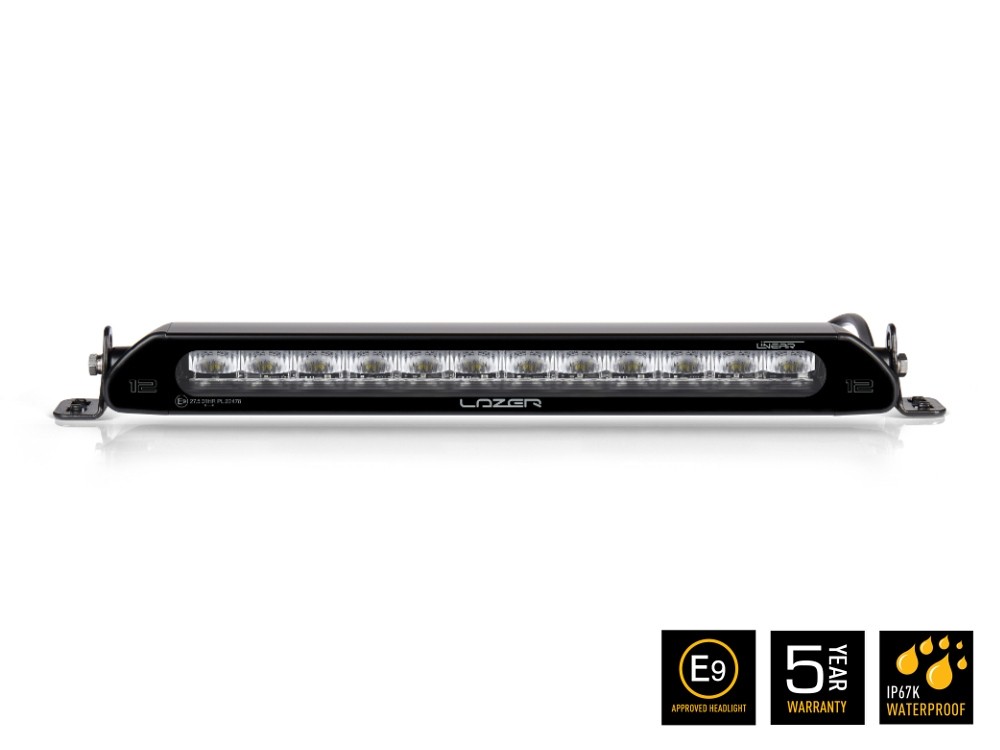

Lazer LED-Lisävalo Linear 12

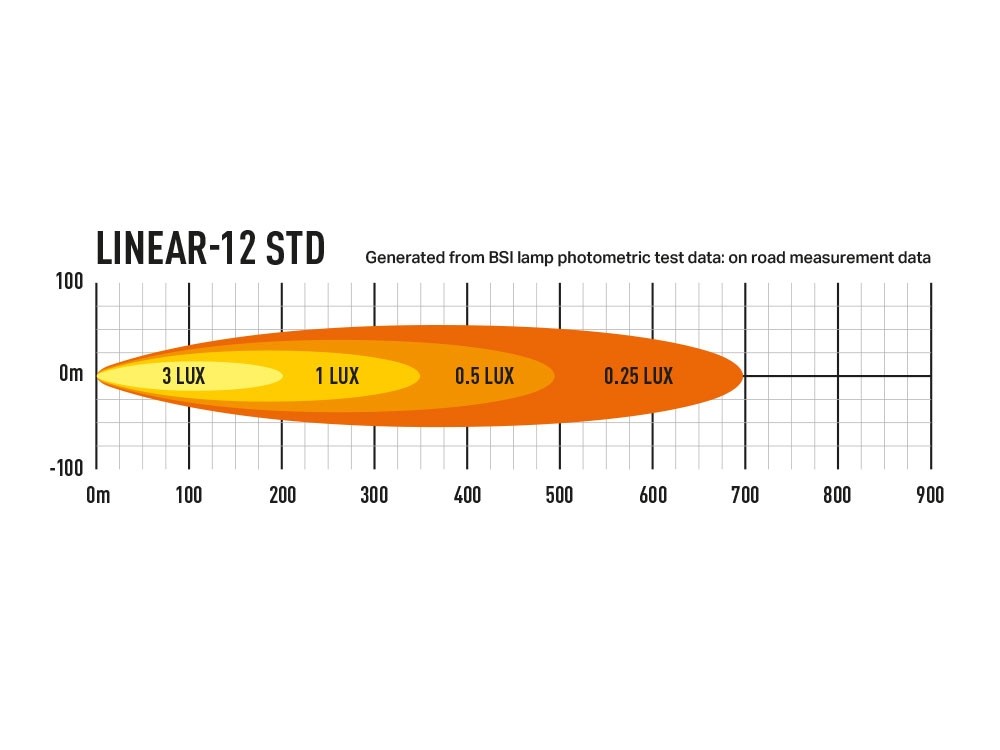

The Linear-12 is an ECE approved, road-legal versatile and cost-effective auxiliary lighting solution which can be installed either as a single lamp or in pairs (dependent on country-specific regulations). Providing a significant upgrade when compared with any OE headlamps, the Linear-12 is ideal for passenger vehicles where the lamp(s) are being mounted low down at the front of the vehicle. Utilising 12x highly efficient 3W LEDs, the Linear-12 delivers 4,500 lumens, and 1 Lux to near 350m, this with minimal power consumption of 42W and with a current draw of 2.9Amps. The light distribution can be best described as ?wide? which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-12 especially well suited to lower install positions, such as vehicle grille or number plate mounting. At just 382mm in length, and with an aluminium body measuring just 40mm in height, and weighing 800grams, this is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless 'unbreakable' polycarbonate front lens, featuring hardcoat lacquer, allows for improved aero performance and prevents build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come. What's included: - x1 Linear-12 LED Lamp - x1 Side Mount (1126k) - x1 Wiring and Installation Instructions Voltage Range 9-32V LED Life 50,000 hours Weight 800 gr HIGH BEAM FUNCTION Total Luminous Flux 4500 Lm Number of High Output LEDs 12 Power Consumption 42 Watts Current Draw (at 14.4V) 2.92 Amps CERTIFICATION High Beam ECE R112 ECE Reference 27.5 DIMENSIONS Width 382 mm Depth 62 mm Height 40 mm PHOTOMETRIC DATA 0.25 lx Line 698 metres 0.5 lx Line 494 metres 1 lx Line 349 metres 3 lx Line 202 metres
