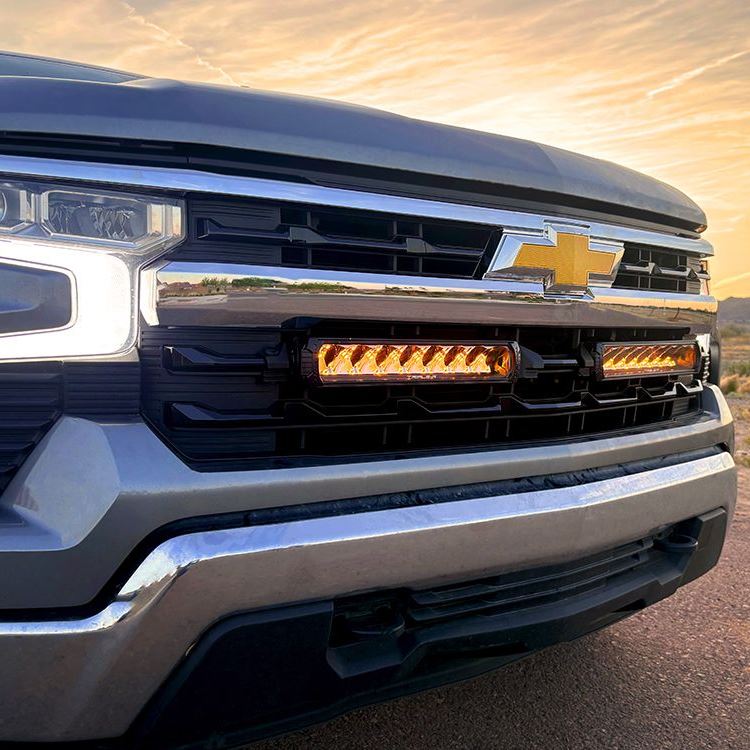

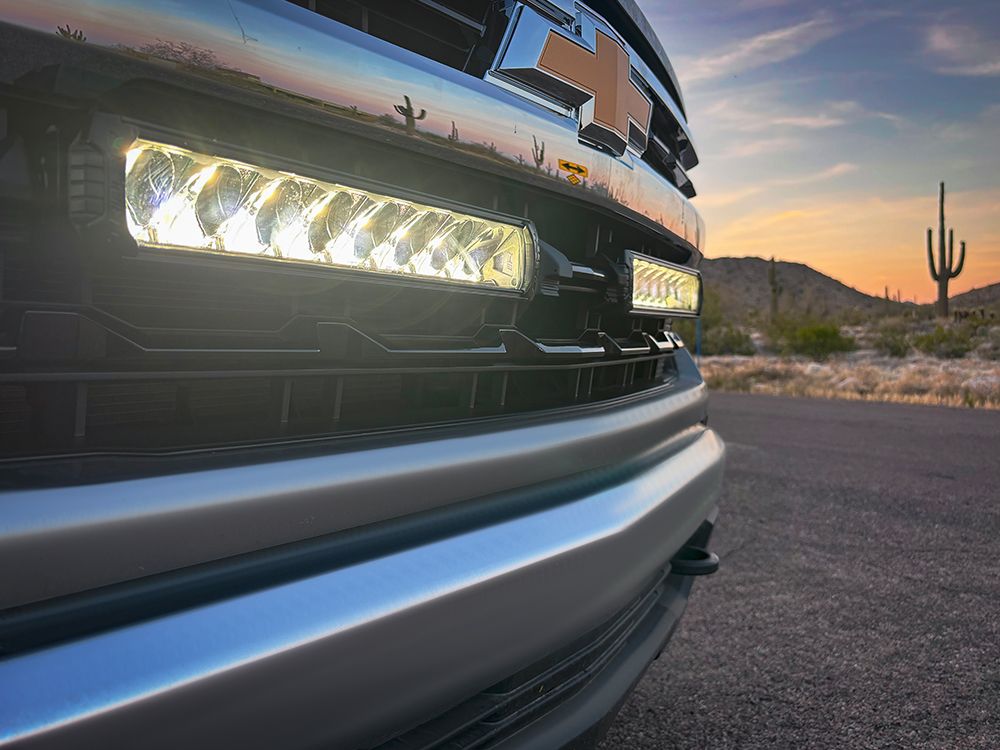

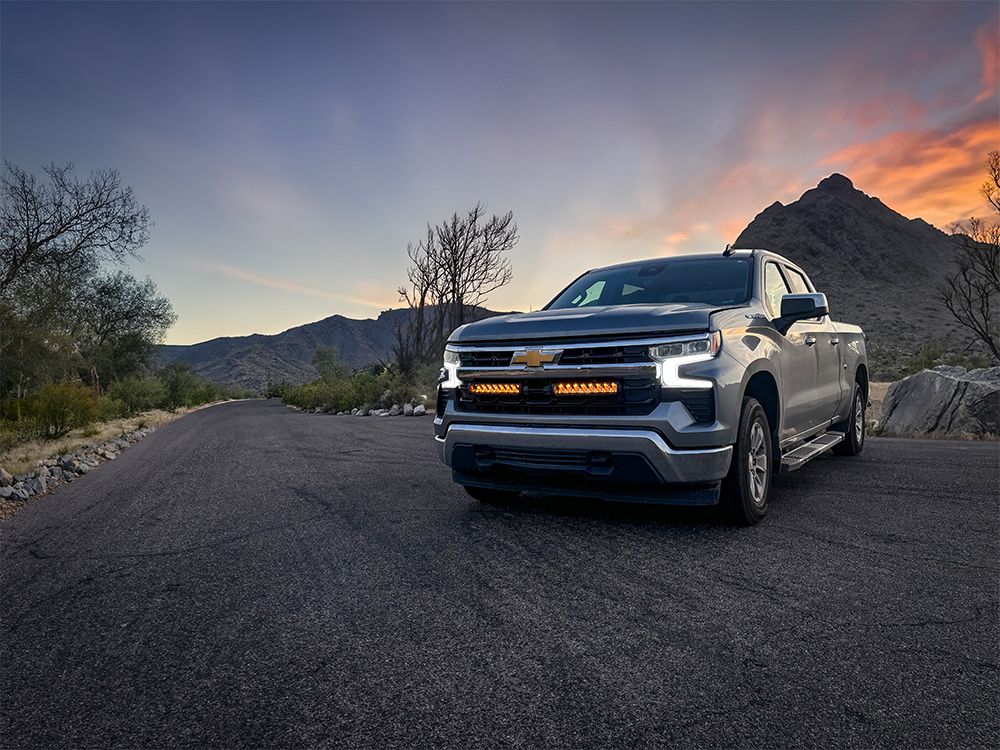

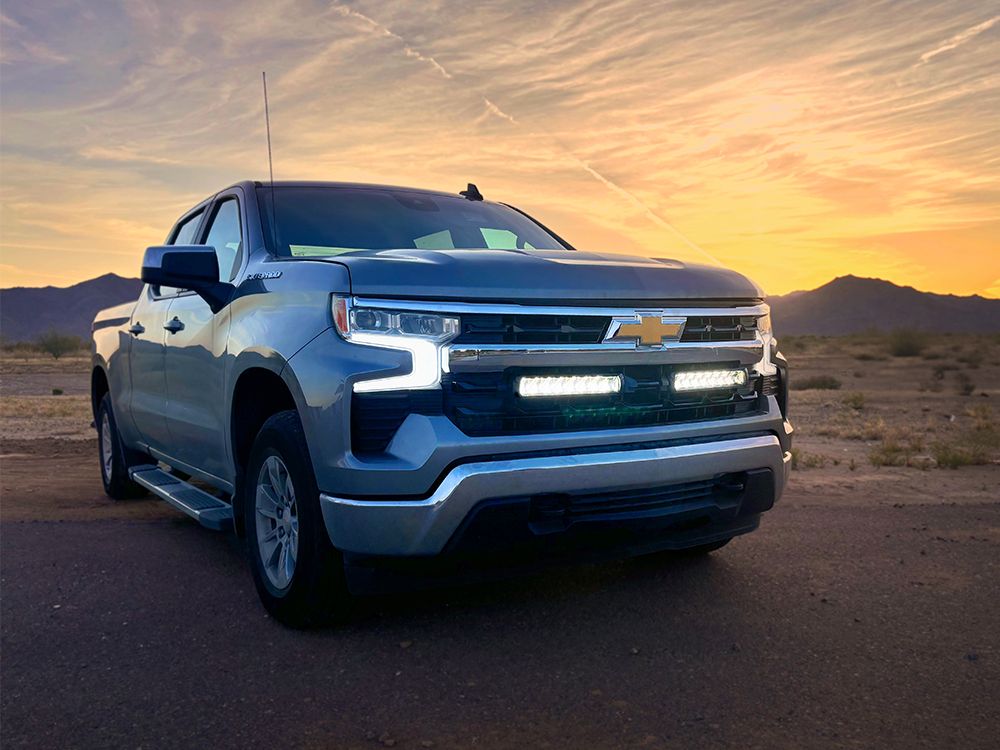

Chevrolet Silverado 1500 LT 2022-2024 Grille Kit - Triple-R 1000 Elite

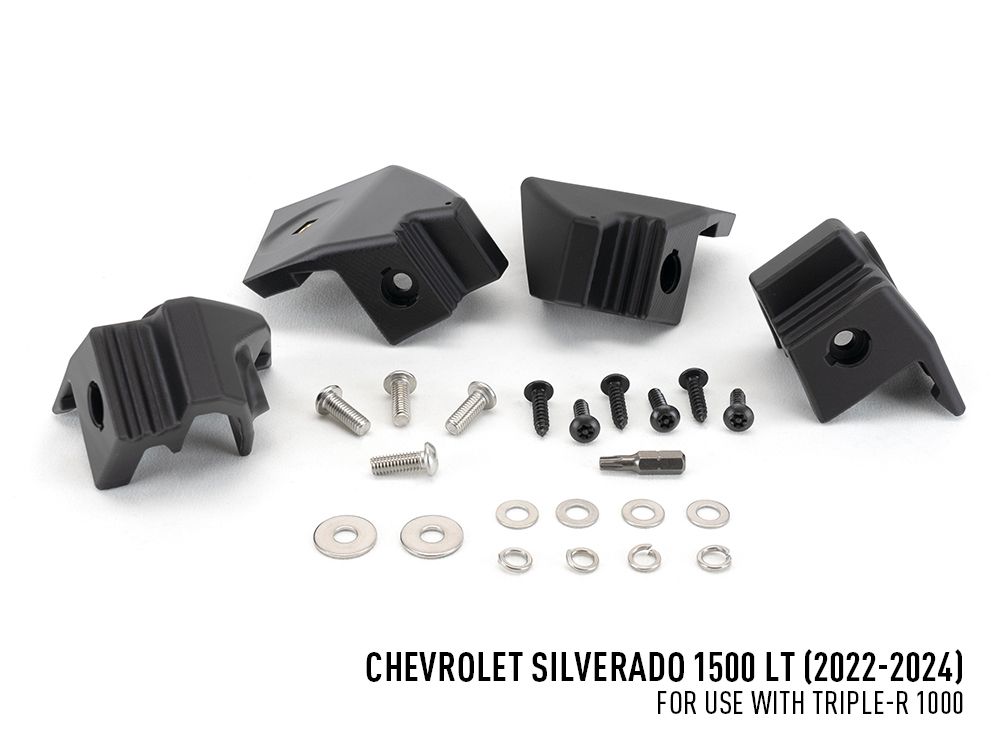

Whatever the task, whatever the destination – get there faster, safer, and in style with our bespoke grille integration kit, featuring a pair of our Triple-R 1000 high-performance LED lamps, seamlessly integrated into the grille. For an auxiliary light installation with OEM-level quality, the Lazer Grille Integration Kits include bespoke mounting brackets that allow for quick and easy installation of Lazer High Performance LED lights into the front grille of the most popular passenger cars, pickups, and light commercial vehicles. Designed to blend seamlessly with each vehicle's original styling, the installation ensures a robust and secure result – with added protection against theft. The kit includes a pair of Triple-R 1000 High Performance LED driving lights, along with wiring and four precision-engineered brackets that fit perfectly into the vehicle’s standard center grille. The brackets are made from a composite material known for its high strength and UV resistance. They are fully weather- and chemical-resistant, ensuring the installation remains in top condition year after year. A set of cutting templates is also included with the brackets to facilitate installation and ensure a perfect fit every time. In some vehicles where Xenon or LED headlights are standard, a direct 12V high beam signal may be missing. In such cases, a CAN interface is required. For optimal results, we recommend using the XBB Dongle & PowerUnit, Art. no: 121180. Product Features Bespoke vehicle-specific integration kit for installing Lazer LED lights Designed for use with Triple-R 1000 High Performance LED lights Optional white or amber position/side light function (Standard and Beacon models only) Kit also includes bespoke mounting brackets and two-lamp wiring kit Brackets made from high-strength, UV-stable composite material Installation completed without removing the grille (cutting templates included) Fully road legal 5-year warranty Made in Britain

Technical Specifications	2x Triple-R 1000 / Triple-R 1000 Beacon (Boost Mode)	2x Triple-R 1000 Elite (Boost Mode)	2x Triple-R 1000 Elite i-LBA (Boost Mode)
Voltage Range (DC)	10–32V	10–32V	10–32V
LED Life	50,000 h	50,000 h	50,000 h
Weight	3.4 kg	3.4 kg	3.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux	18,480 lm	20,272 lm	22,136 lm
Total Driver 'FOV' Flux †	11,144 lm	13,360 lm	14,588 lm
Colour Temperature	5000K	5000K	5000K
Number of High Output LEDs	2 x 8	2 x 8	2 x 8
Power Consumption	176 W	208 W	190 W
Current Draw (at 14.4V)	12.2 A	14.4 A	13.2 A
CERTIFICATION
High Beam	ECE R149	ECE R112	ECE R112
ECE Reference	2x 12.5 (in low output mode)	2x 25 (in low output mode)	2x 30 (in low output mode)
Position Light (white only)	ECE R7	N/A	N/A

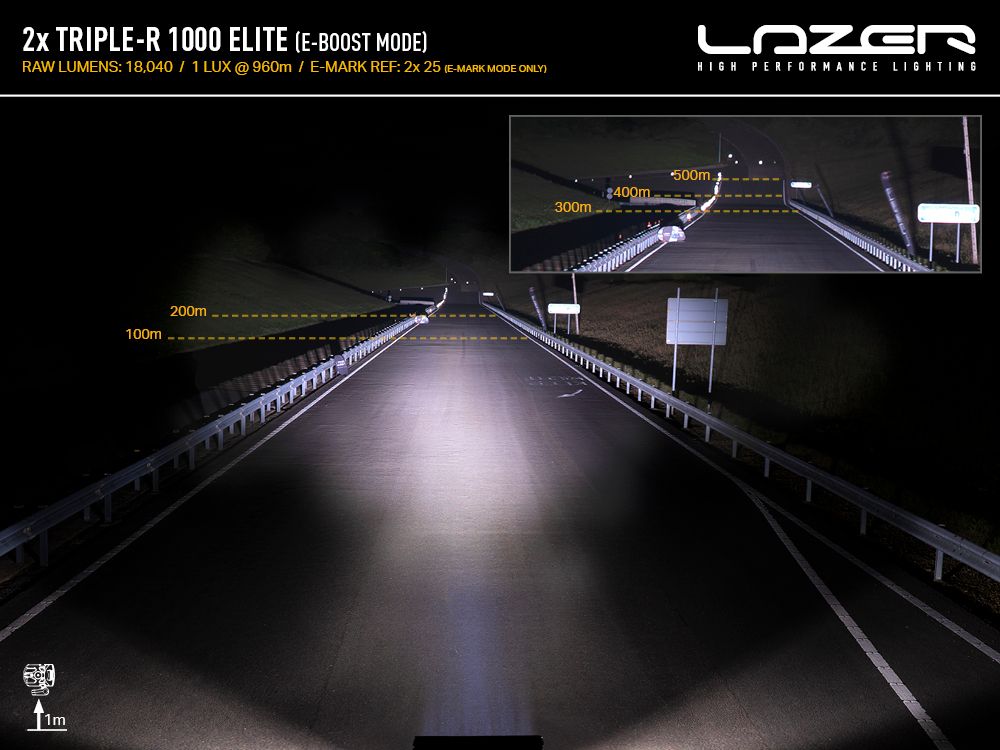

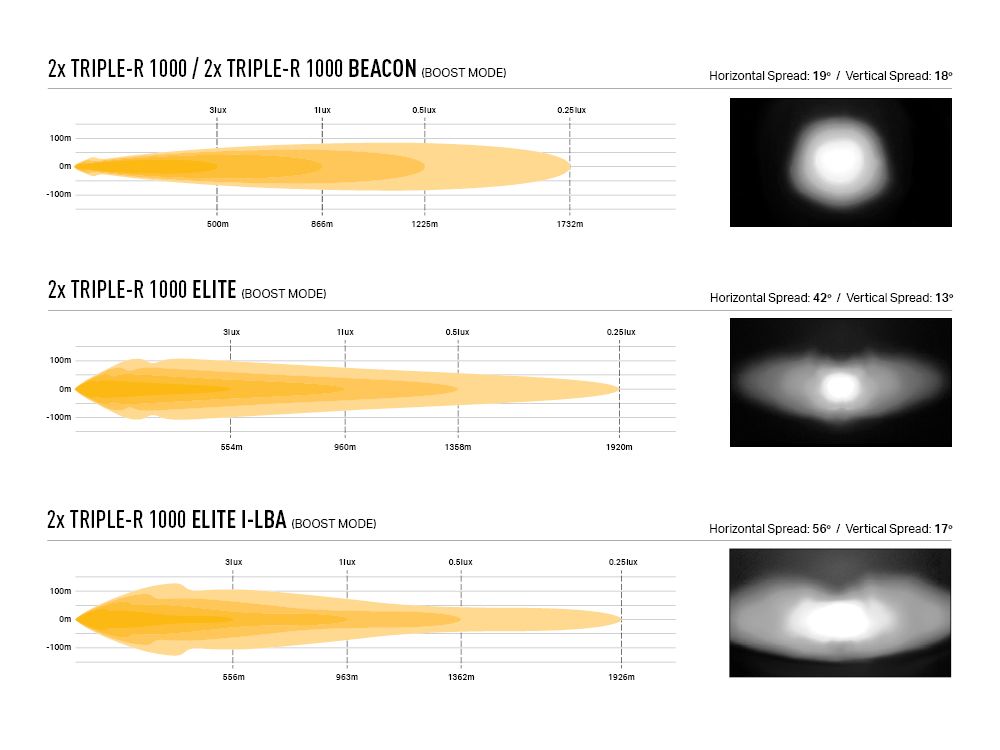

PHOTOMETRIC DATA
Horizontal Beam Angle	19°	42°	56°
0.25 lx Line	500 m	554 m	556 m
0.5 lx Line	866 m	960 m	963 m
1 lx Line	1225 m	1358 m	1362 m
3 lx Line	1732 m	1920 m	1926 m

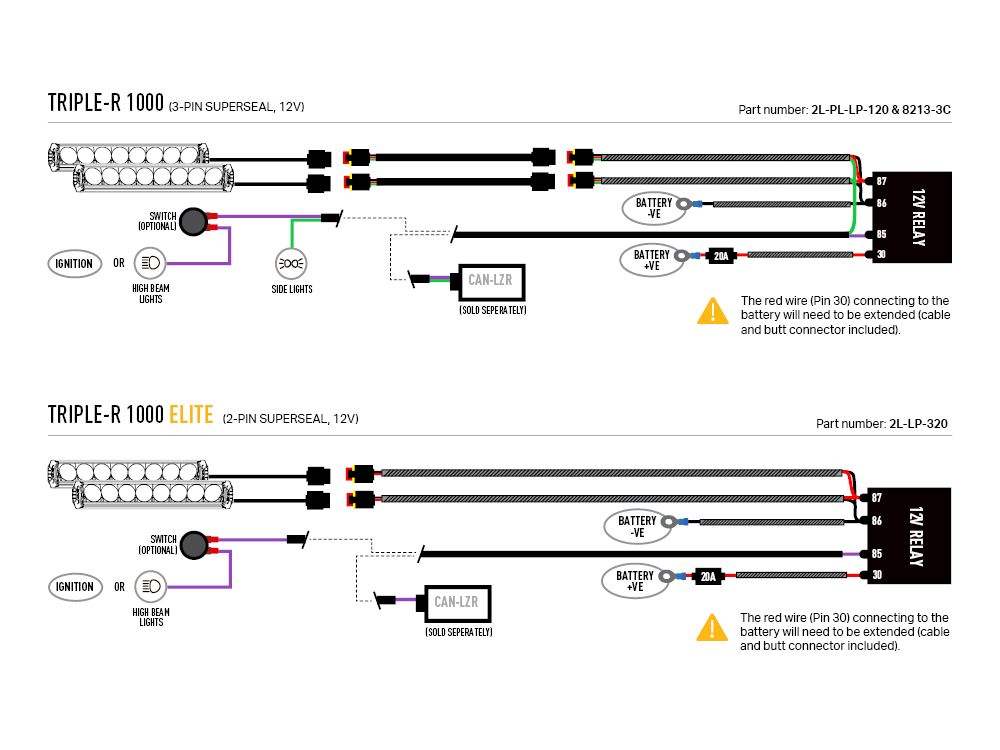

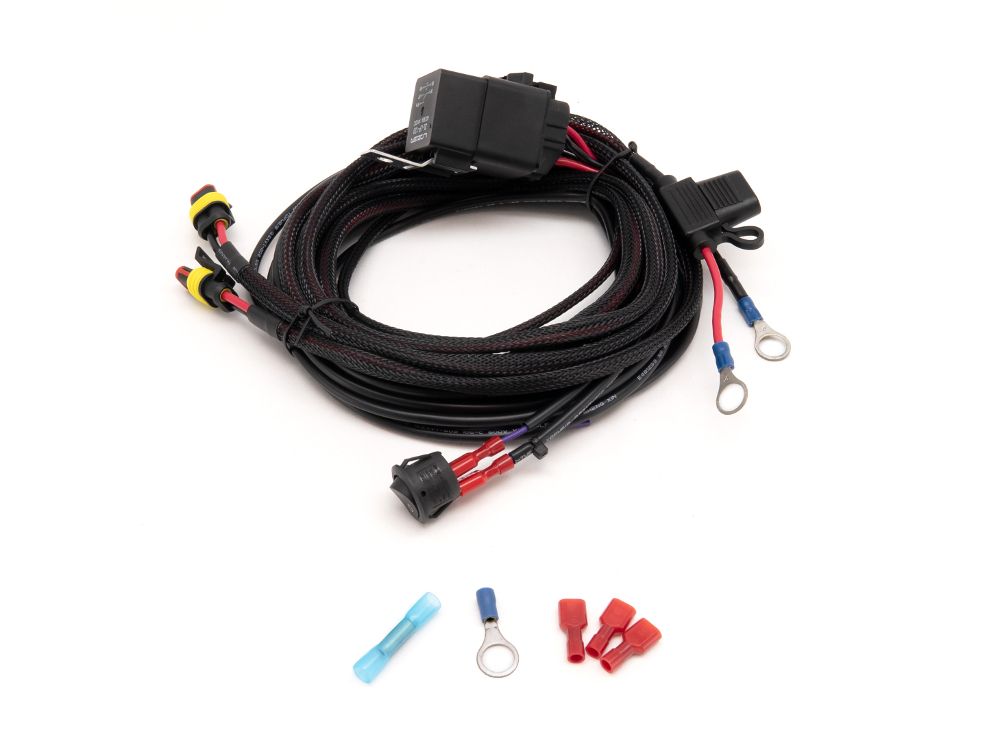

What's Included 1 x Grille Mounting Kit (includes cutting templates) 2 x Triple-R 1000 LED Lamps 1 x Two-Lamp Wiring Kit Installation Instructions
