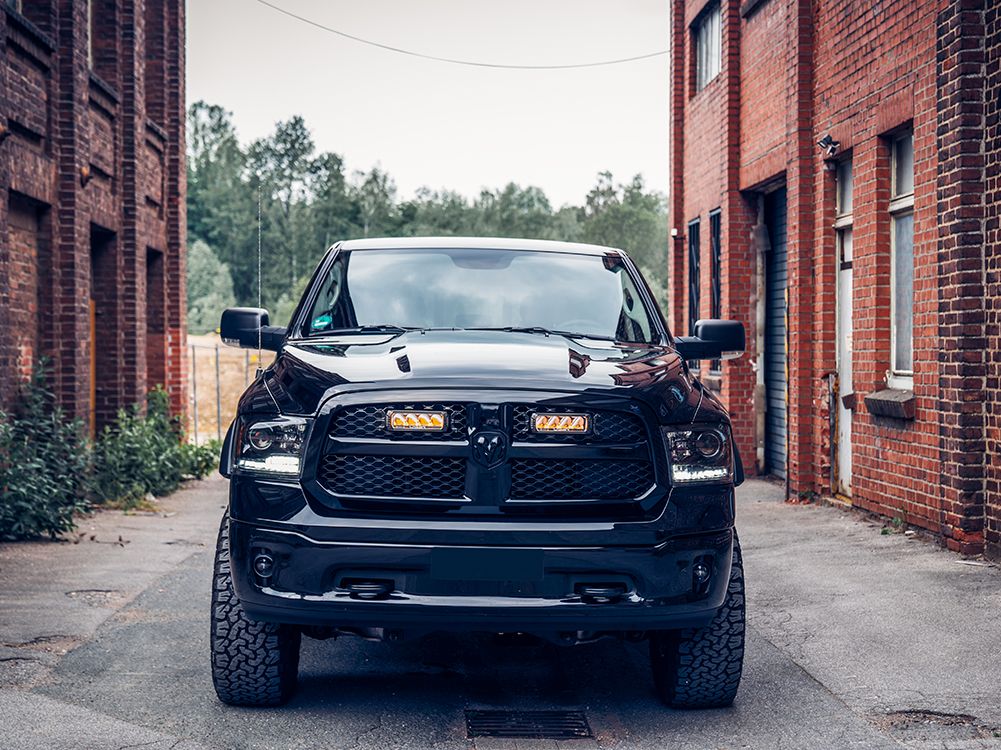

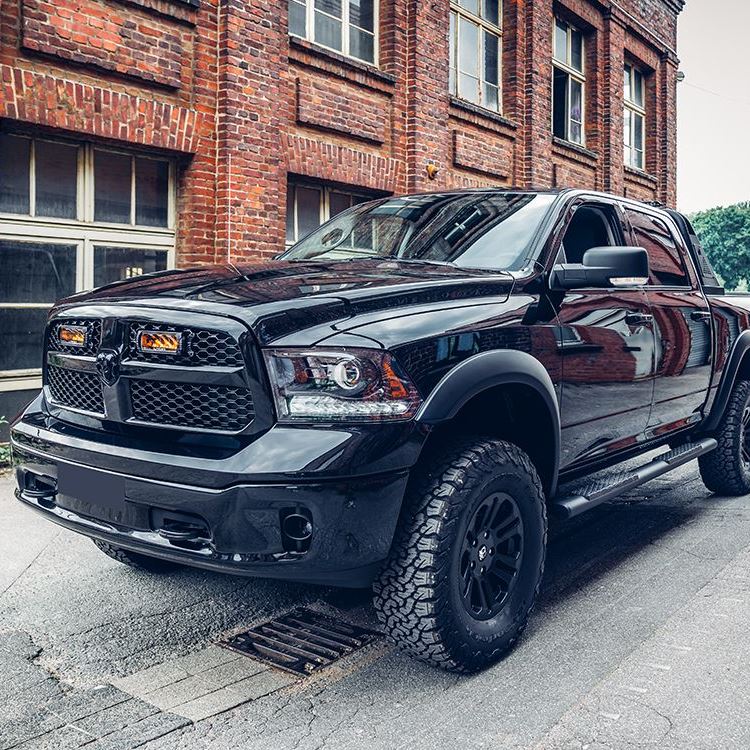

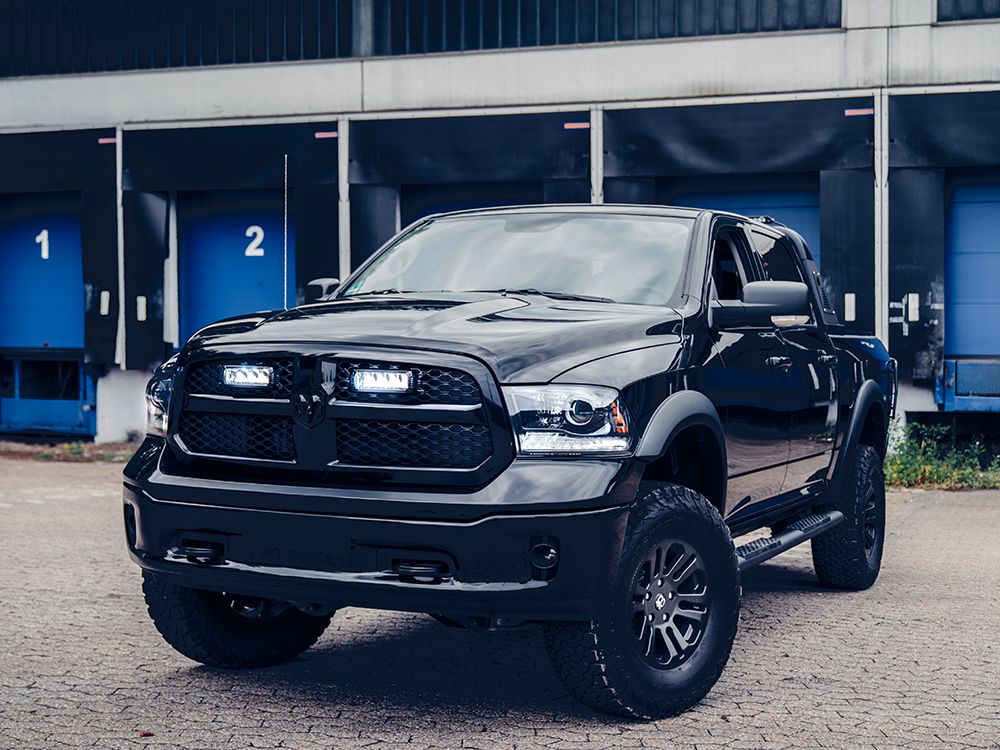

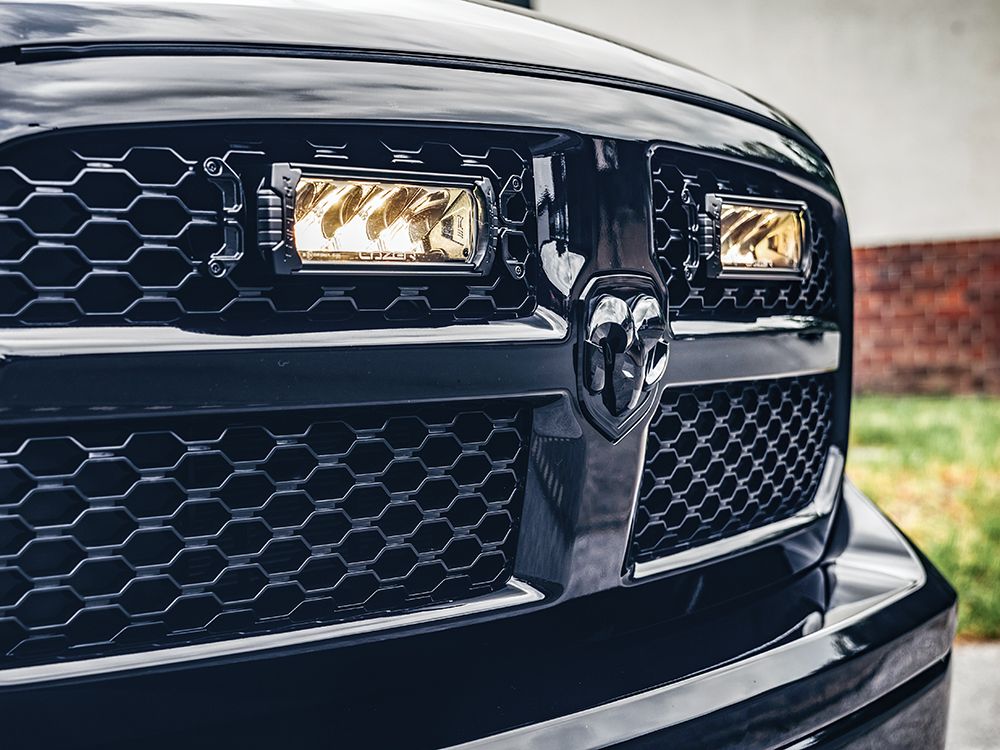

Dodge RAM 1500 2013-2018 Grille Kit - Triple-R 750 Elite

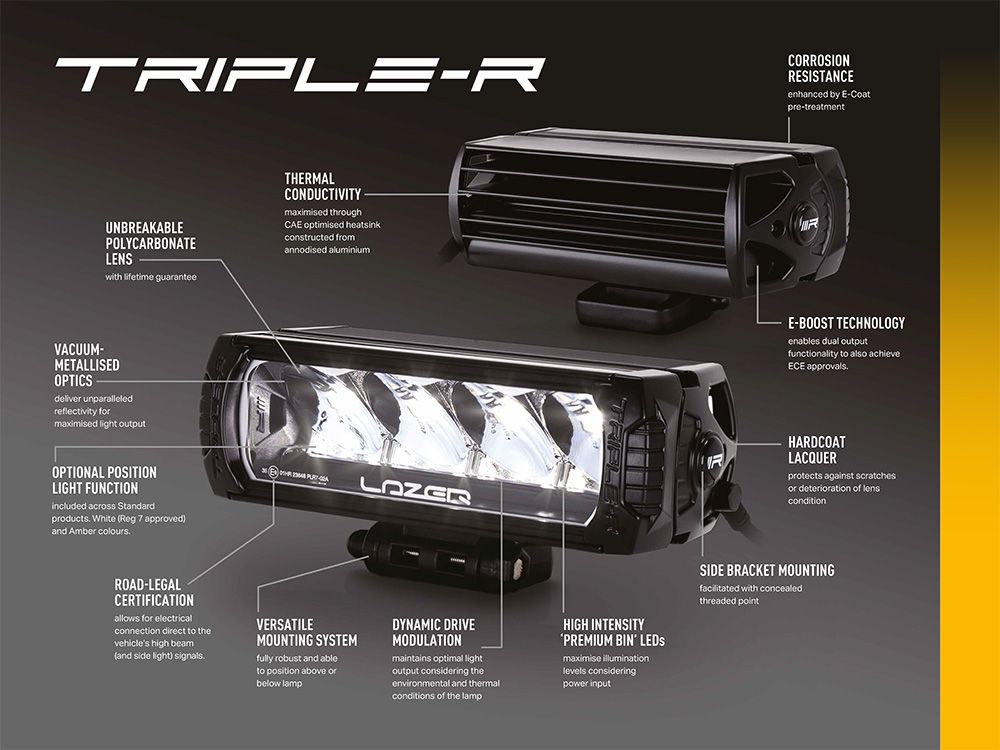

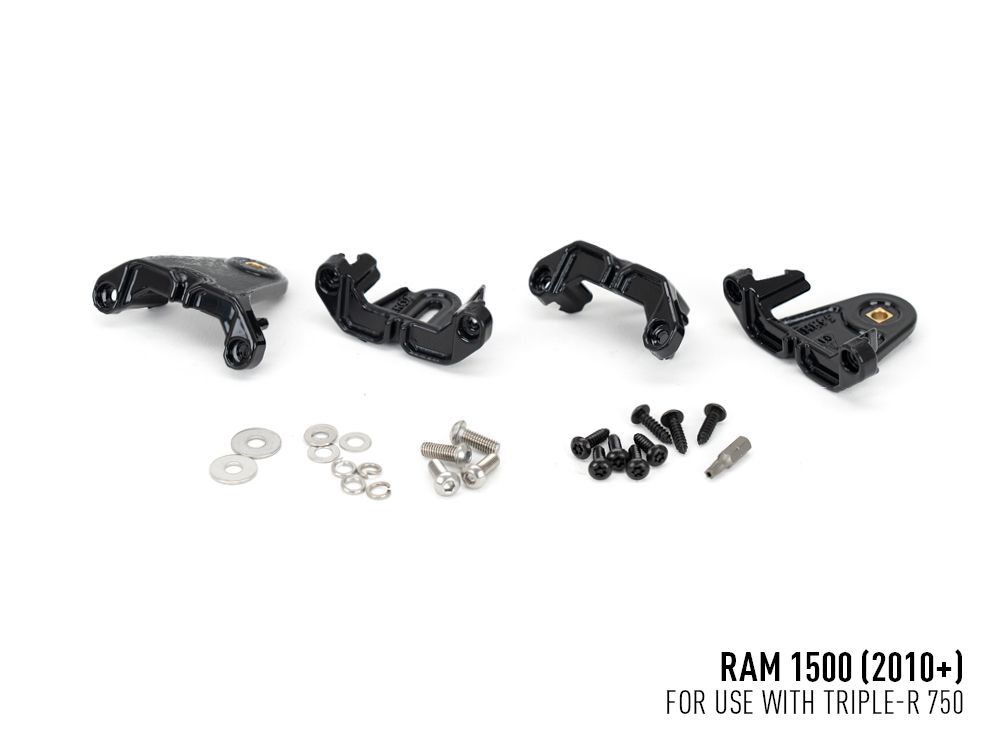

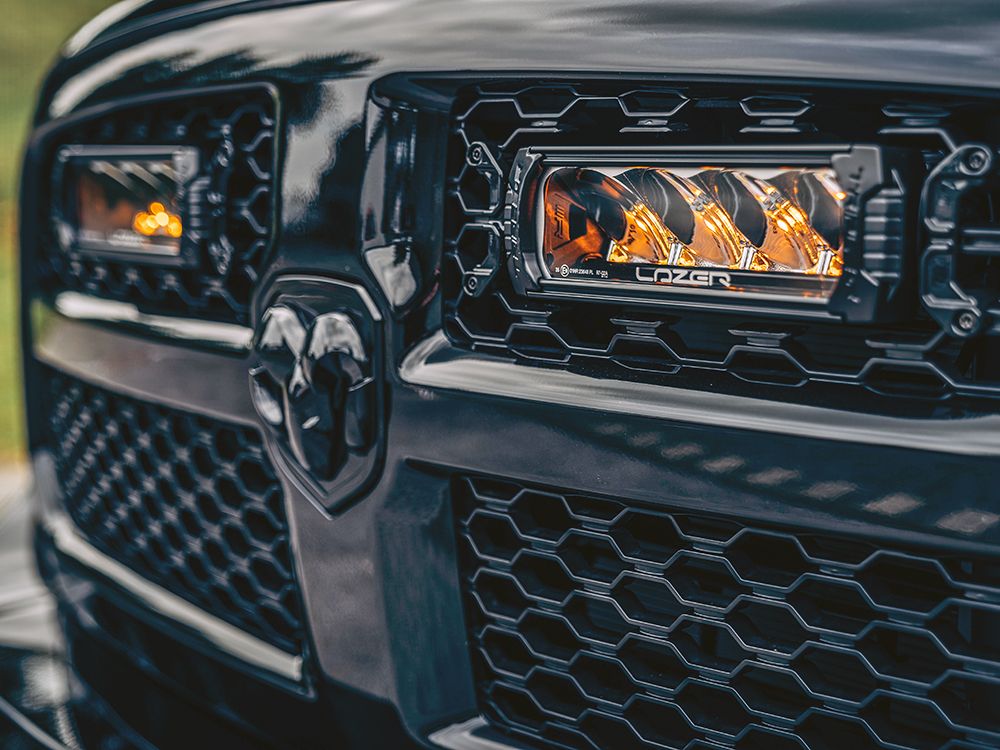

Upgrade the look and performance of your vehicle with the Lazer Grille Kit – designed to deliver a sleek, OE-style appearance while providing powerful, road-legal lighting performance. Each kit includes a pair of Triple-R 750 high-performance LED lightbars, available in four variants to suit different driving needs. Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent range and spread, along with integrated position light function. Wide offers a broader beam and features a lower ECE Regulation 149 reference value – no boost cap required, making it ideal for use in countries with specific lighting regulations. Beacon is built for flexibility and includes an integrated amber warning light and position light function, along with advanced features like "flash-to-dim". Elite delivers maximum performance with superior optics and extended range – perfect for serious night-time driving. The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s original grille. The brackets are made from UV-stable, high-strength composite material, fully resistant to weather and chemicals. The kit also includes cutting guides, a wiring kit for two lamps, and anti-theft fasteners for an easy, secure, and long-lasting installation. Product Features Vehicle-specific brackets for seamless OE-style grille integration Tailored fit for the selected vehicle model Designed for use with Triple-R 750 LED lightbars Includes precision-engineered brackets and two-lamp wiring kit Supplied with cutting guides and anti-theft fasteners for a secure and straightforward install Brackets manufactured from high-strength, UV-resistant composite material Fully road-legal and ECE certified Backed by a comprehensive 5-year warranty

Technical Specification	2x TRIPLE-R 750 WIDE	2x TRIPLE-R 750	2x TRIPLE-R 750 BEACON (BOOST MODE)	2x TRIPLE-R 750 ELITE (BOOST MODE)
Voltage Range (DC)	10–32V	10–32V	10–32V	10–32V
LED Life	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Weight	2.6 kg	2.6 kg	2.6 kg	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm	9240 Lm	10800 Lm	10136 Lm
Total Driver 'FOV' Flux †	5266 Lm	5572 Lm	2484 Lm	6680 Lm
Colour Temperature	5000K	5000K	5000K	5000K
Power Consumption	88 Watts	88 Watts	104 Watts	104 Watts
Current Draw (14.4V)	6.2 A	6.2 A	7.4 A	7.2 A
Connector	2-Pin Superseal (+25 cm cable)	3-Pin Superseal (+25 cm cable)	6-Pin Superseal (+25 cm cable)	2-Pin Superseal (+25 cm cable)
CERTIFICATION
IP Rating #	IP68	IP68	IP68	IP68
High Beam (E9 Approval)	ECE R149 - Ref: 2x 20	ECE R112 - Ref: 2x 35	ECE R149 - Ref: 2x 10 (Low Output Mode)	ECE R112 - Ref: 2x 12.5 (Low Output Mode)
Position Light (White)	Not applicable	ECE R7	ECE R7	Not applicable
EMC Certification	ECE R10	ECE R10	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2	ISO 7637-2	ISO 7637-2

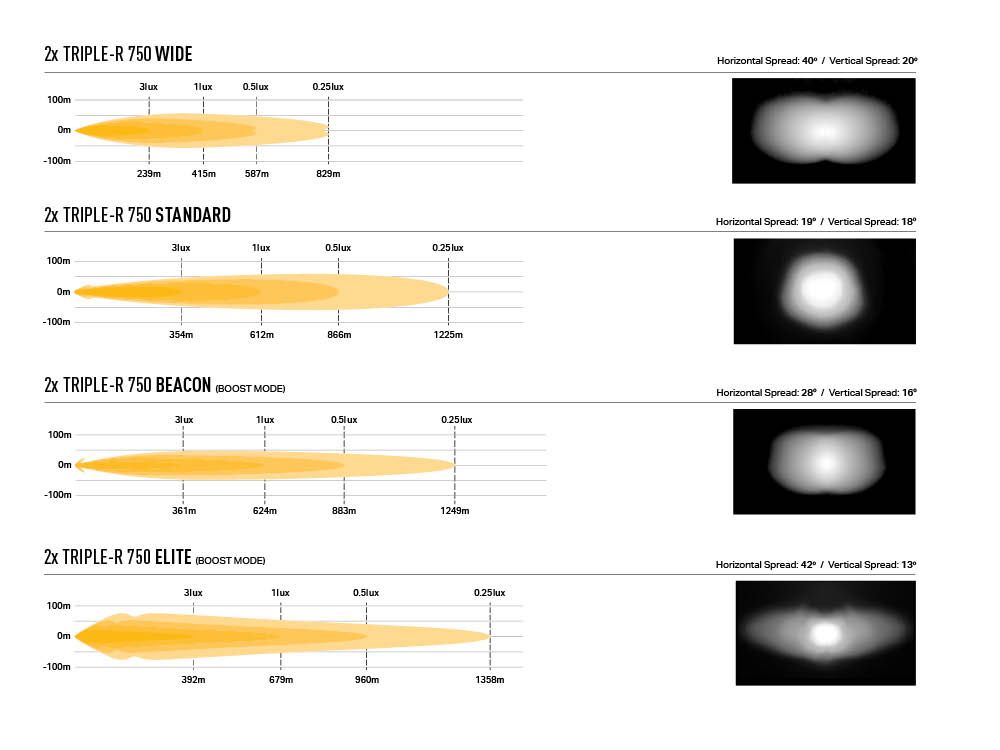

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	40° / 20°	19° / 18°	28° / 16°	42° / 13°
0.25 lux line	829 m	1225 m	1249 m	1358 m
0.5 lux line	587 m	866 m	883 m	960 m
1 lux line	415 m	612 m	624 m	679 m
3 lux line	239 m	354 m	361 m	392 m

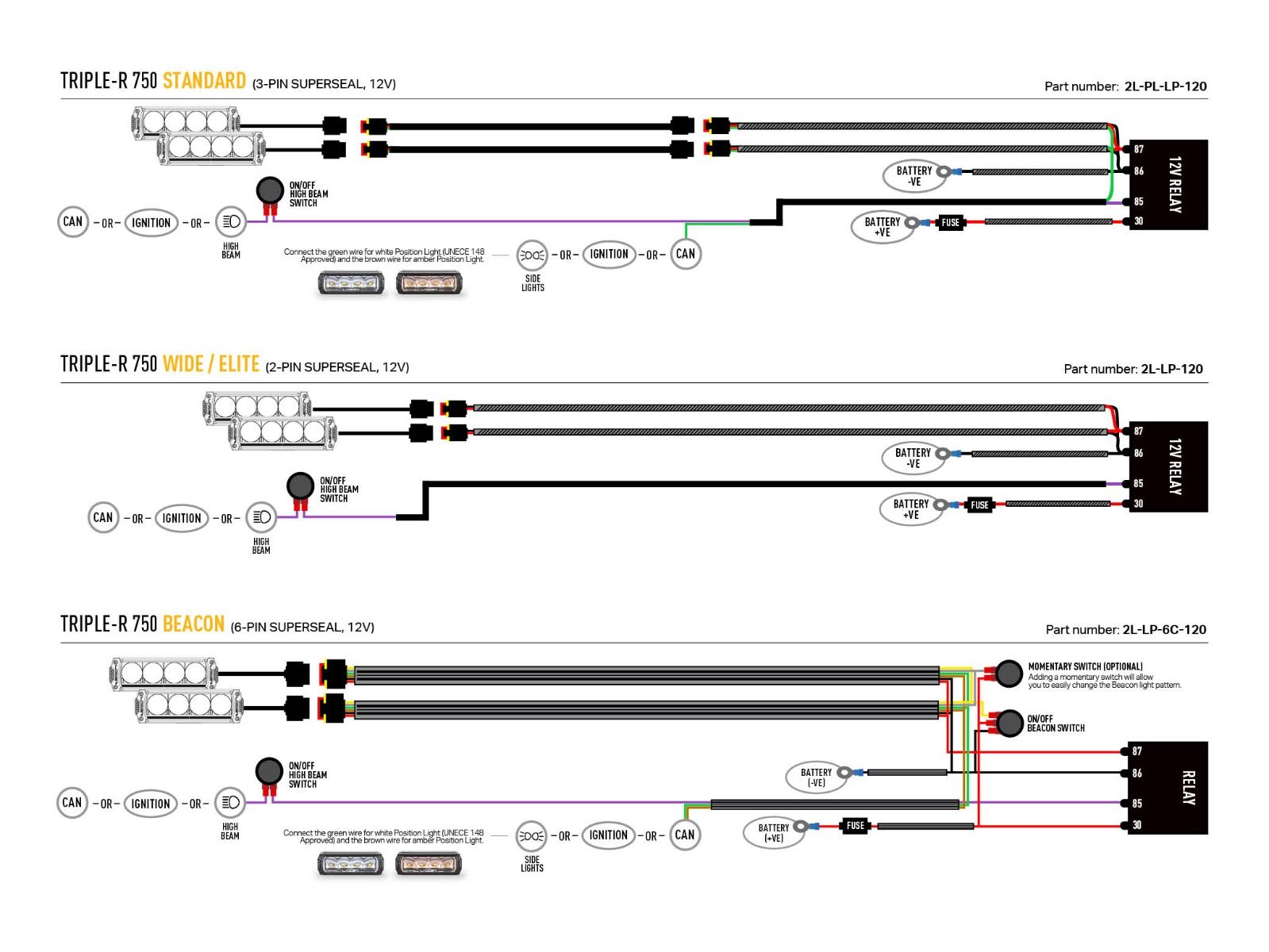

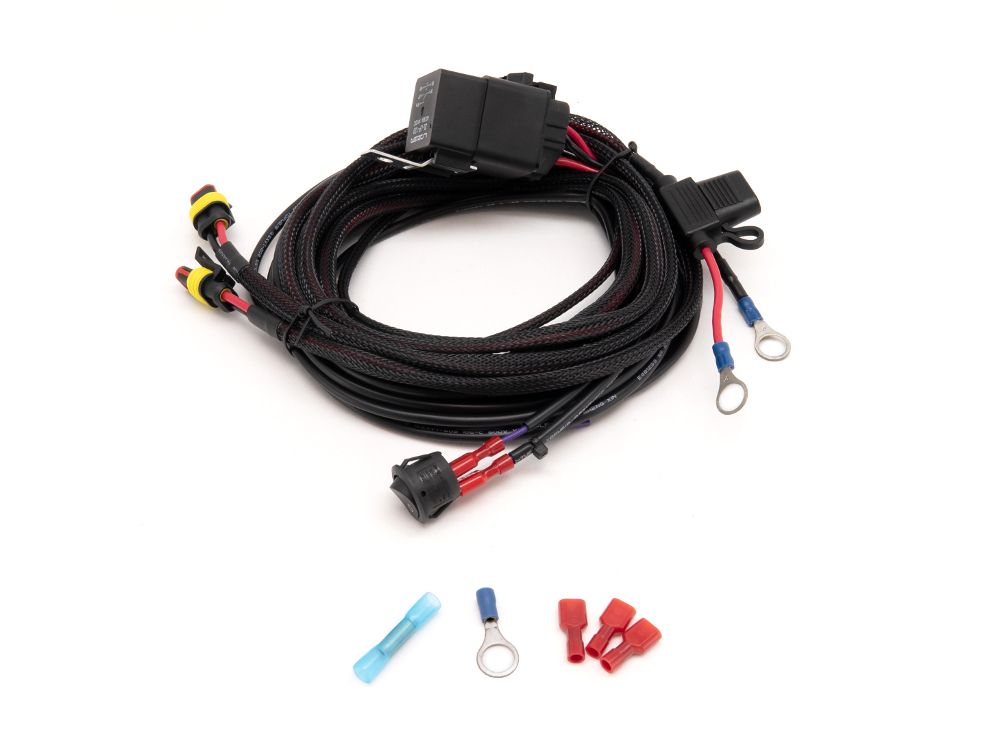

What's Included 1x Grille Mounting Kit (Includes cutting guides) 2x Triple-R 750 LED Lightbars 1x Two-Lamp Wiring Kit Installation Instructions
