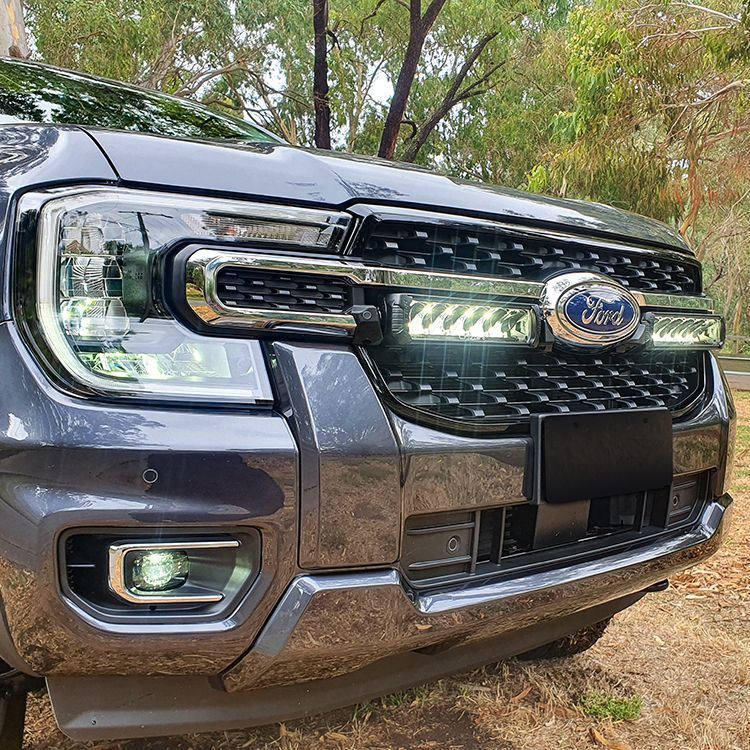

Ford Ranger Limited 2023+ Grille Kit - Triple-R 850

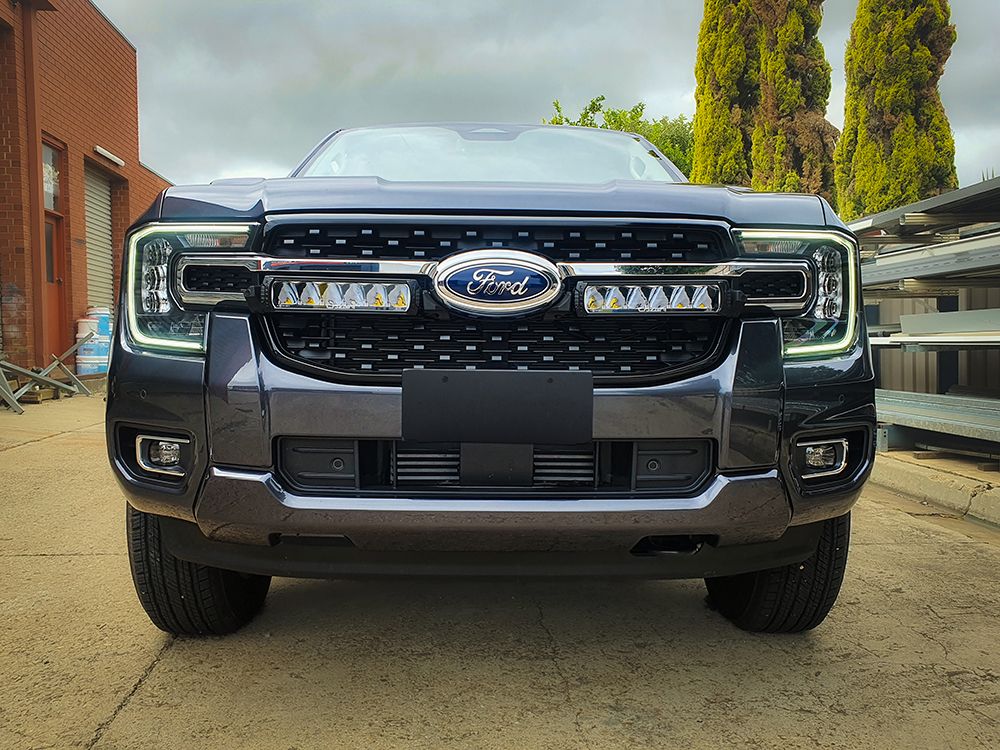

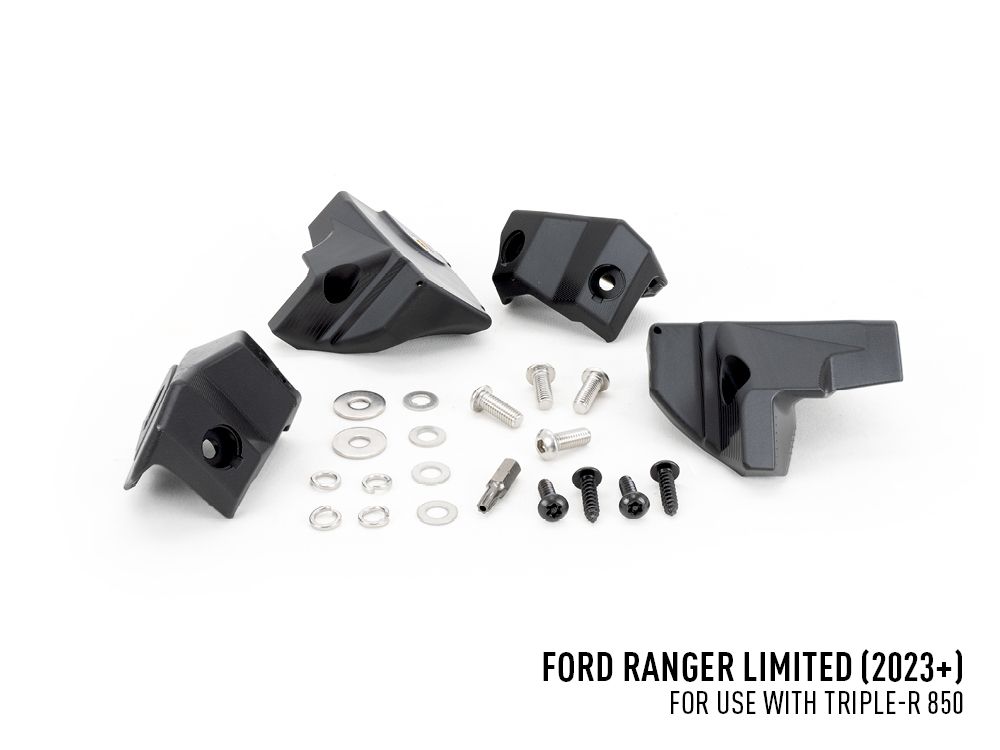

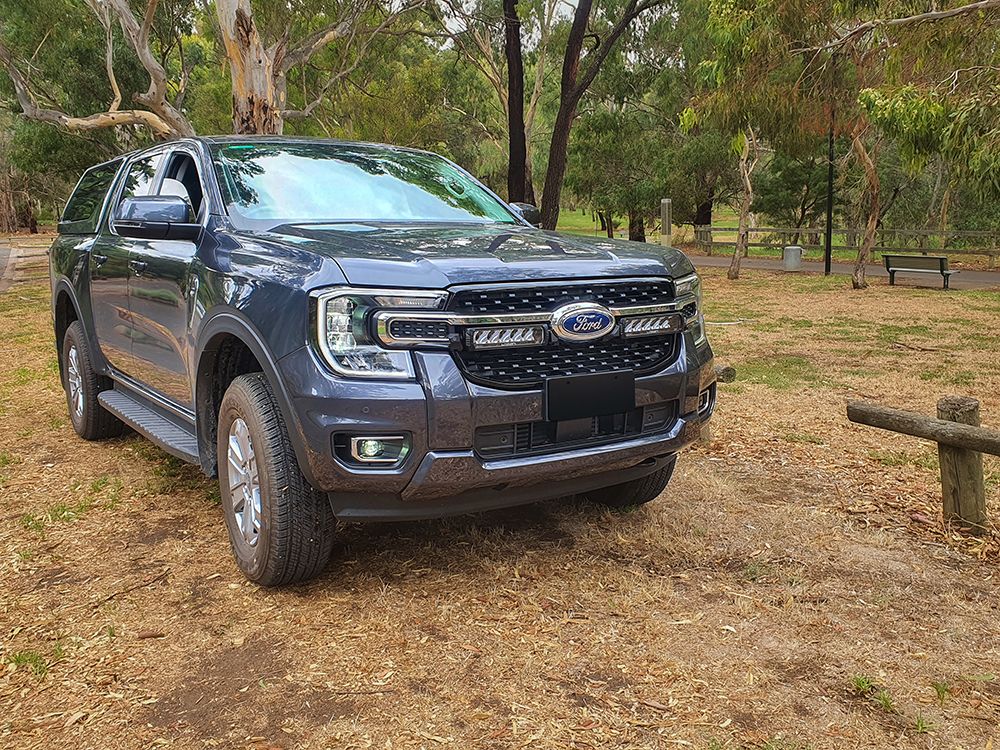

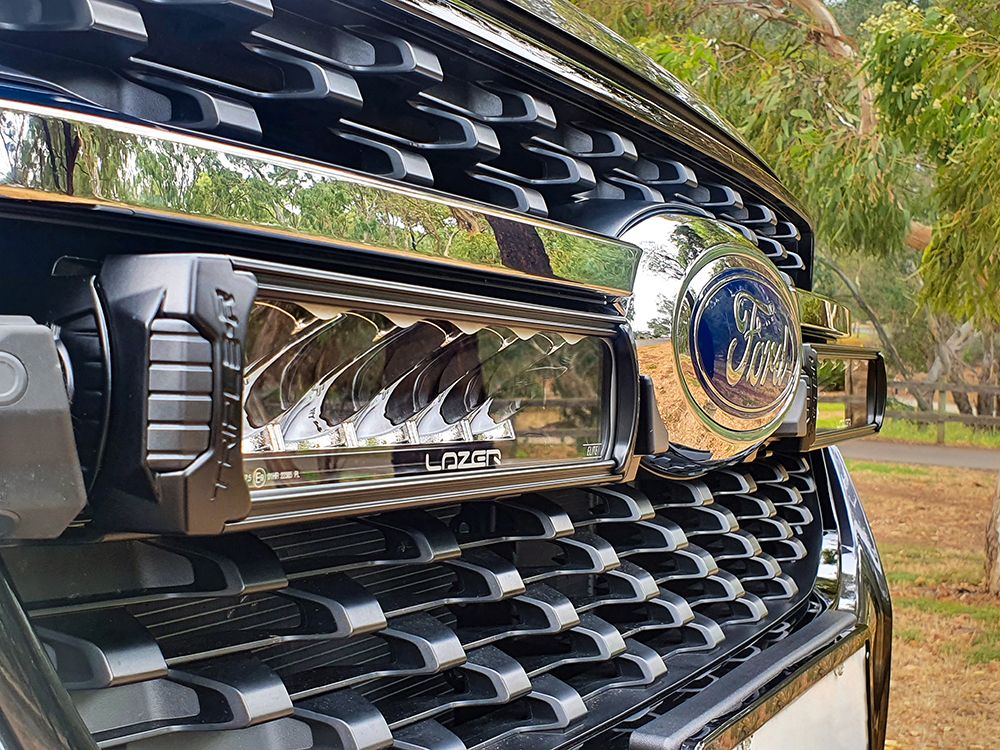

For an auxiliary light installation with OEM-level quality, the Lazer Grille Integration Kits include bespoke mounting brackets that enable quick and easy installation of Lazer High Performance LED lights into the grille of the most popular passenger cars, pickup trucks, and light commercial vehicles. Designed to blend seamlessly with each vehicle’s original styling, the installation ensures a robust and secure result. This kit includes a pair of Triple-R 850 High Performance LED driving lights along with wiring, and four precision-engineered brackets that fit perfectly into the vehicle’s standard center grille. Additional strength and security are provided by the included self-tapping plastic screws. The brackets are made from a high-strength composite material known for its excellent durability and UV resistance. They are fully weather- and chemical-resistant, ensuring the installation remains in top condition year after year. To simplify the installation and ensure a perfect fit every time, cutting templates are also included—without requiring removal of the grille or bumper components. In some vehicles where Xenon or LED headlights are standard, a direct 12V high beam signal may be absent. In these cases, a CAN interface is required. For best results, we recommend using the XBB Dongle & PowerUnit, Art. no.: 121180. Product Features Bespoke integration kit for installing Lazer LED lights Vehicle-specific fit Optional integrated white and amber position lights (white only road legal – standard model only) Kit includes bespoke mounting brackets and a two-lamp wiring kit Cutting templates included Brackets made from high-strength, UV-stable composite material Fully road-legal 5-year warranty Made in Britain

Technical Specifications	2x TRIPLE-R 850	2x TRIPLE-R 850 ELITE (BOOST MODE)
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hours	50,000 hours
Weight	2.6 kg	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	13860 Lm	16136 Lm
Total Driver 'FOV' Flux †	8358 Lm	10634 Lm
Colour Temperature	5000K	5000K
Power Consumption	132 Watts	146 Watts
Current Draw (14.4V)	10.2 Amps	10.2 Amps
Connector	3-Pin Superseal (+25cm Cable)	2-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #	IP68	IP68
High Beam (E9 approval)	ECE R112 - Ref: 2x 45	ECE R112 - Ref: 2x 17.5 (Low Output Mode)
Position Light (White)	ECE R148	N/A
EMC Certification	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2

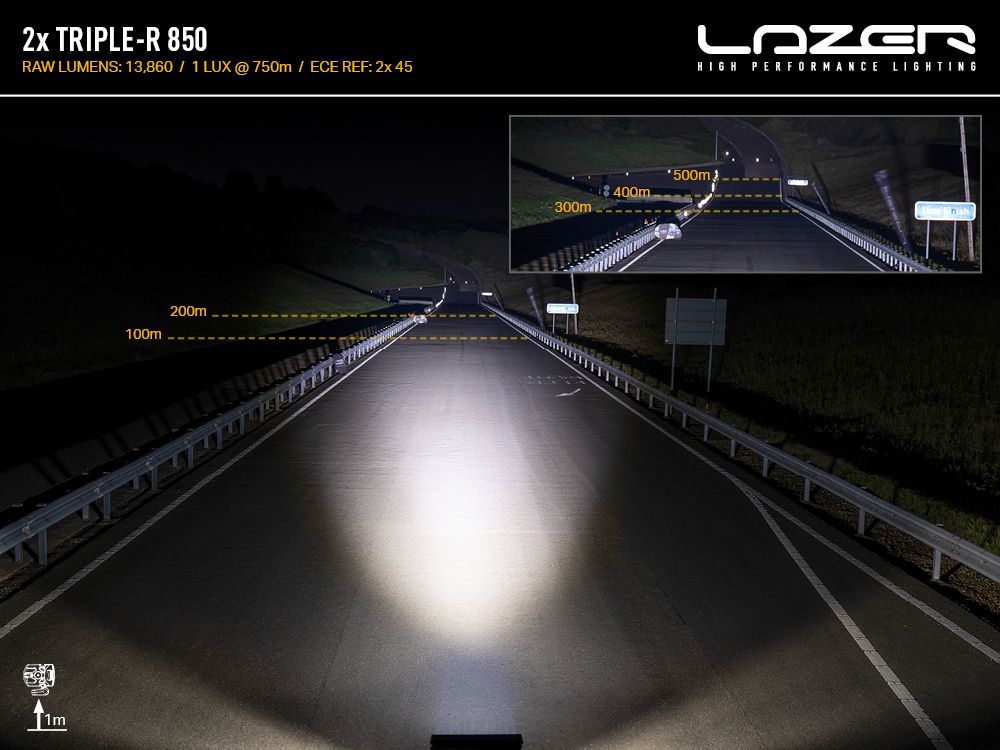

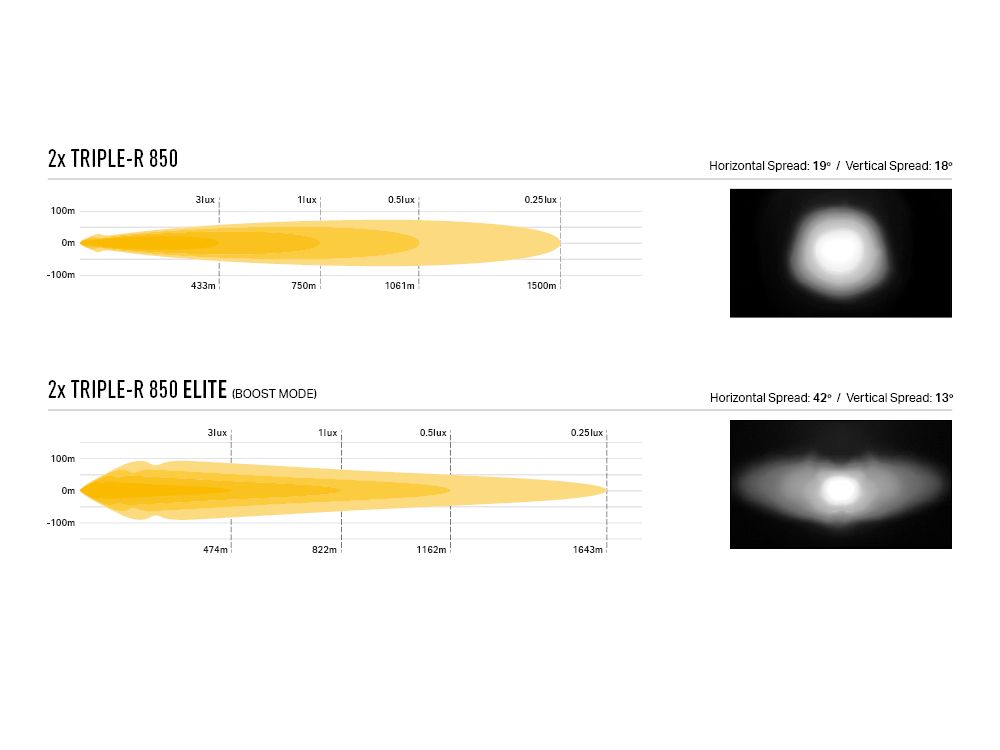

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	19° / 18°	42° / 13°
0.25 Lux	1500m	1643m
0.5 Lux	1061m	1162m
1 Lux	750m	822m
3 Lux	433m	474m

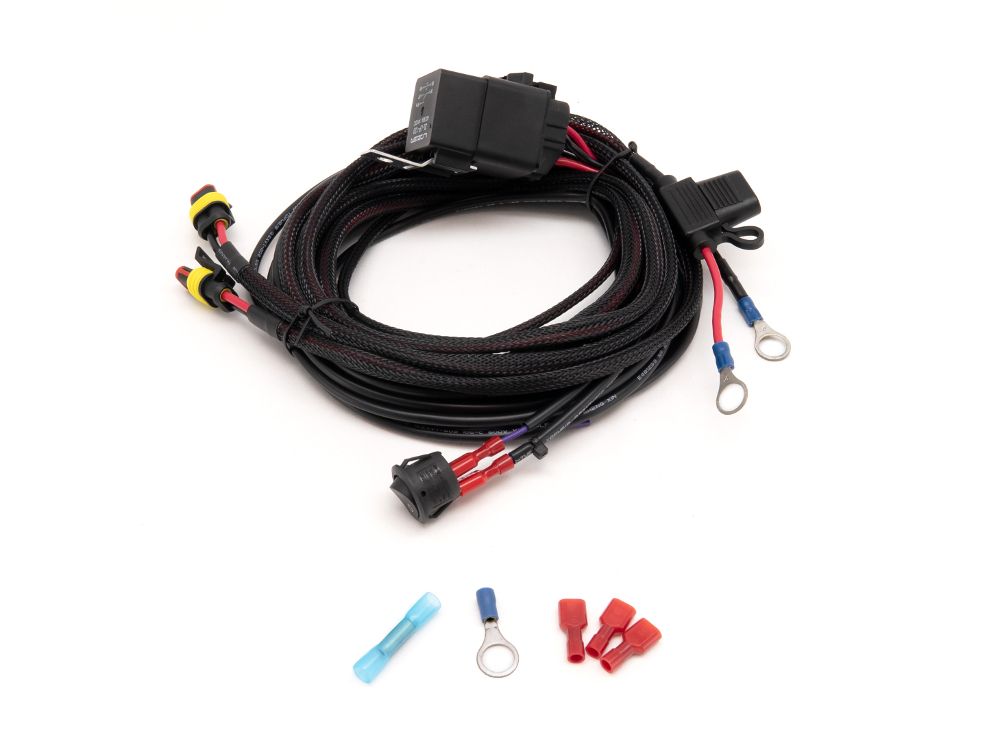

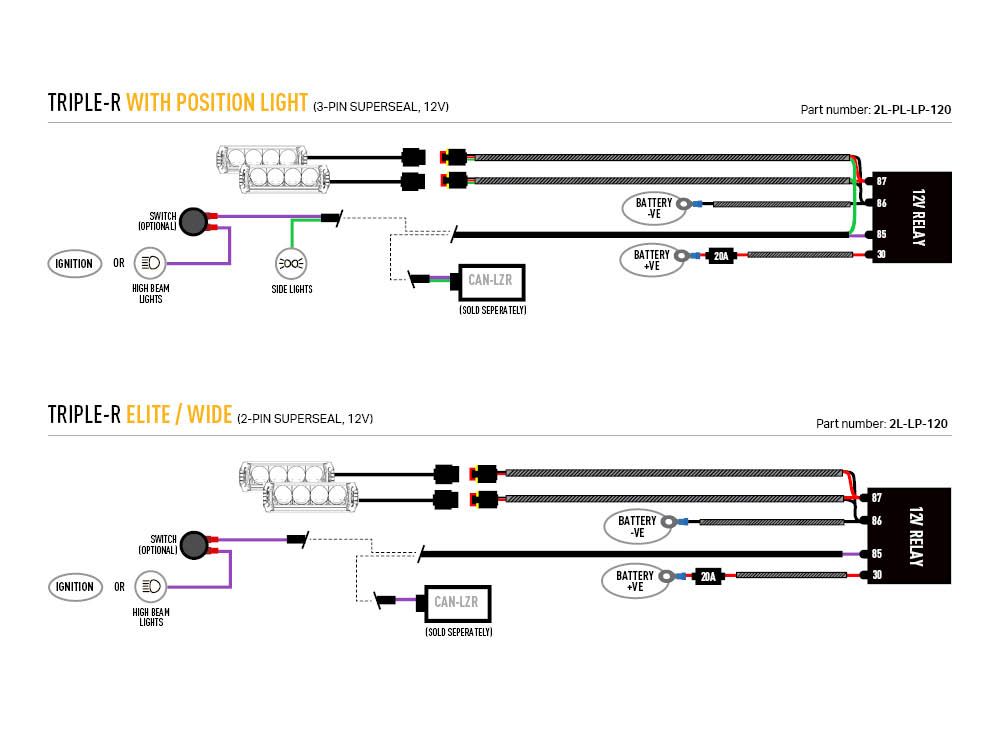

What's Included 1 x Grille Mounting Kit (includes cutting templates) 2 x Triple-R 850 LED Lamps 1 x Two-Lamp Wiring Kit Installation Instructions
