Iveco Daily 2024+ Grille Kit - Linear 18 Elite+

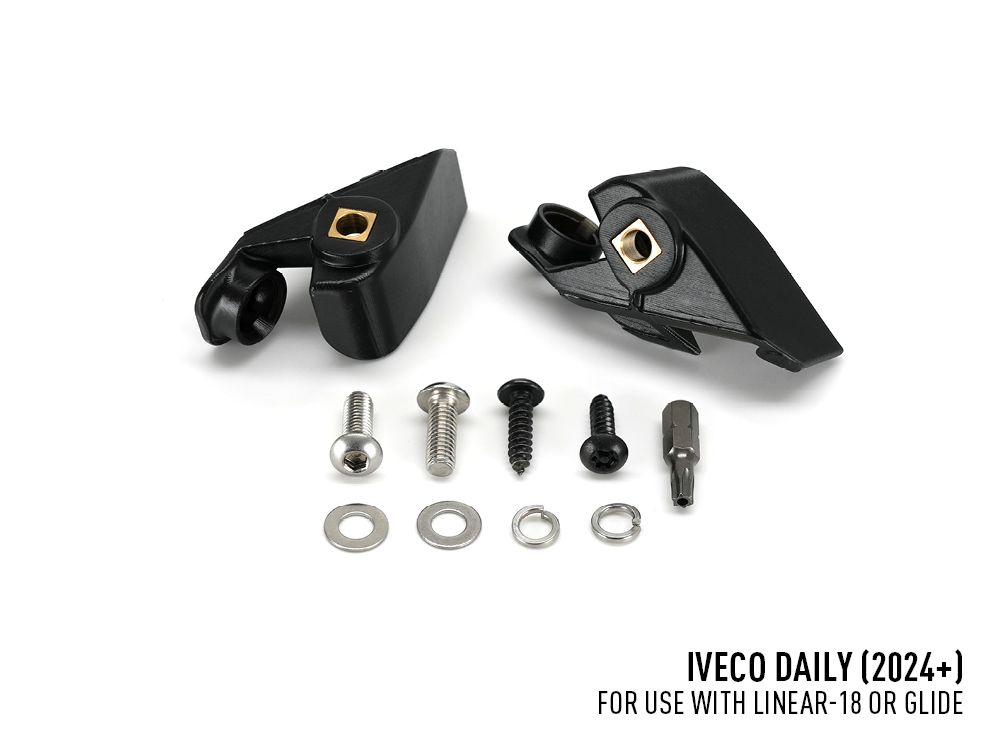

For an OEM-style LED lightbar installation, the Lazer Grille Kit offers custom-fit brackets that allow for quick and seamless mounting of an LED lightbar directly into the vehicle’s front grille. The kits are designed to blend in with the vehicle’s existing design, providing a robust and secure solution with added anti-theft protection. Each kit includes a high-performance LED lightbar, a complete wiring kit, and precision-engineered brackets that fit the vehicle’s standard grille. To enhance durability, self-tapping plastic screws are also included for additional support. The brackets are made from a durable composite material known for its high strength and UV resistance, making them weather- and chemical-resistant for long-lasting performance. The kits come with clear cutting guides to simplify installation and ensure a perfect fit — without the need to remove the grille or bumper. In some vehicles equipped with Xenon or LED headlights as standard, there may be no direct 12V high beam signal. In these cases, installation of a CAN interface is required. For optimal results, we recommend using the XBB Dongle & PowerUnit, Art. No.: 121180. Product Features Custom vehicle brackets for seamless integration Tailored fit Kit includes brackets and wiring Cutting guides included Brackets made from high-strength, UV-resistant composite material Fully road-legal 5-year warranty Made in Britain

Technical Specifications

Specification	LINEAR-18 ELITE+ (BOOST)
Voltage Range (DC)	10–32V
LED Life	50,000 hrs
Weight	1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux	14,850 Lm
Total Driver 'FOV' Flux †	10,573 Lm
Colour Temperature	5000K
Power Consumption	134 W
Current Draw (14.4V)	9.9 A
Connector	3-Pin Aptiv (+25cm Cable)
CERTIFICATION
IP Rating	IP68
High Beam (E9 approval)	ECE R149 (Ref: 27.5*)
EMC Certification	ECE R10
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2

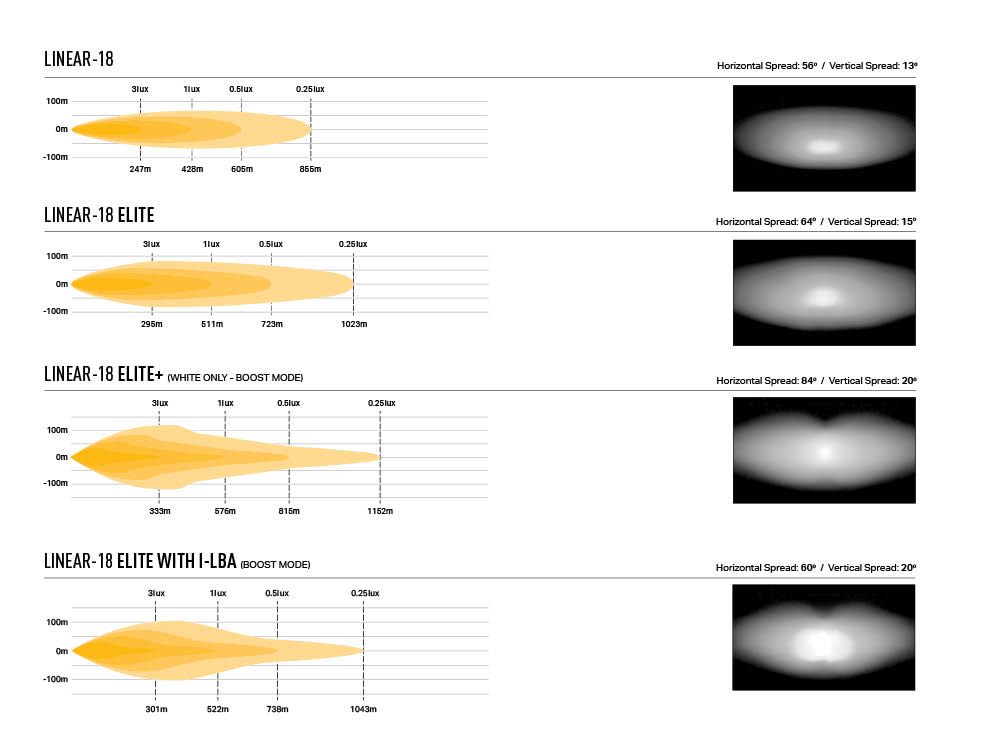

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle	84° / 20°
0.25 lux	1152 m
0.5 lux	815 m
1 lux	576 m
3 lux	333 m

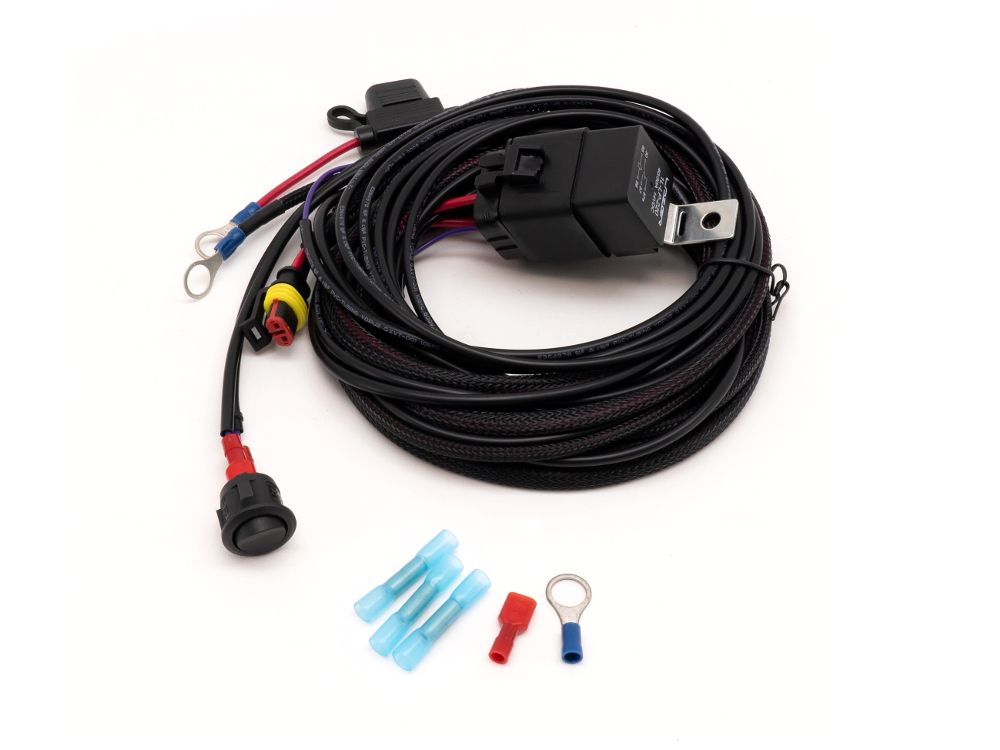

What’s Included 1x Grille Mounting Kit (includes cutting guides) 1x LED Lightbar 1x Relay Wiring Kit Installation Instructions
