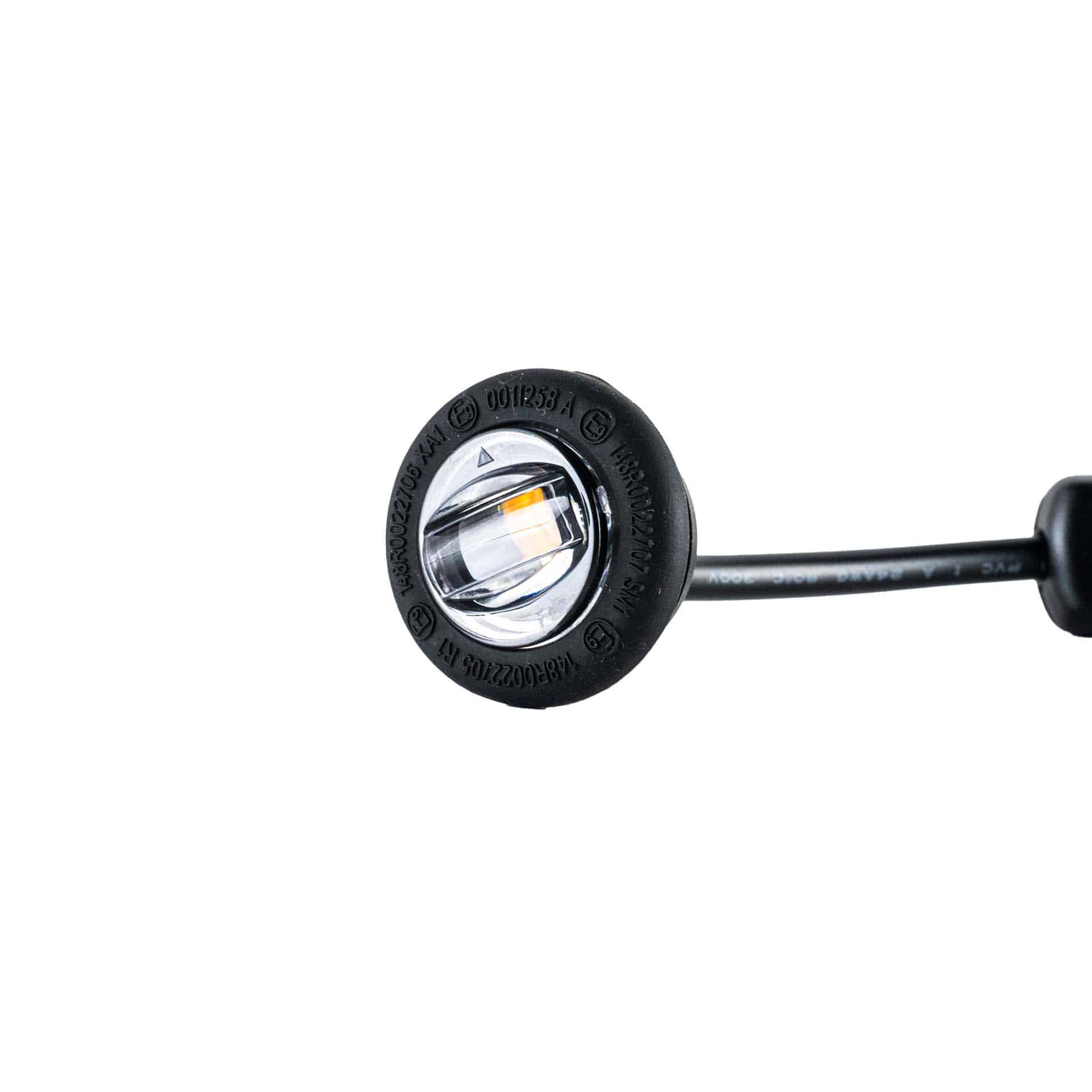

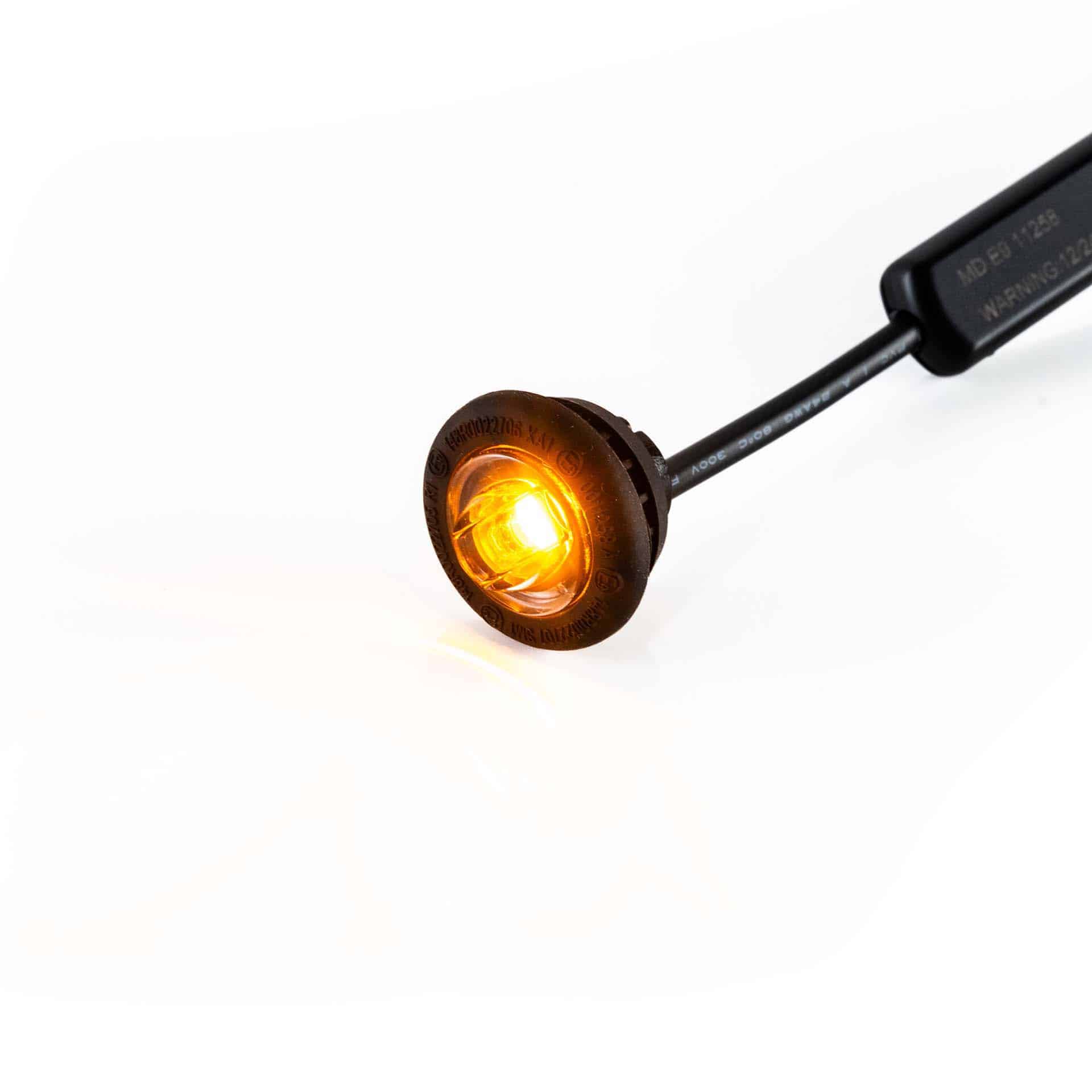

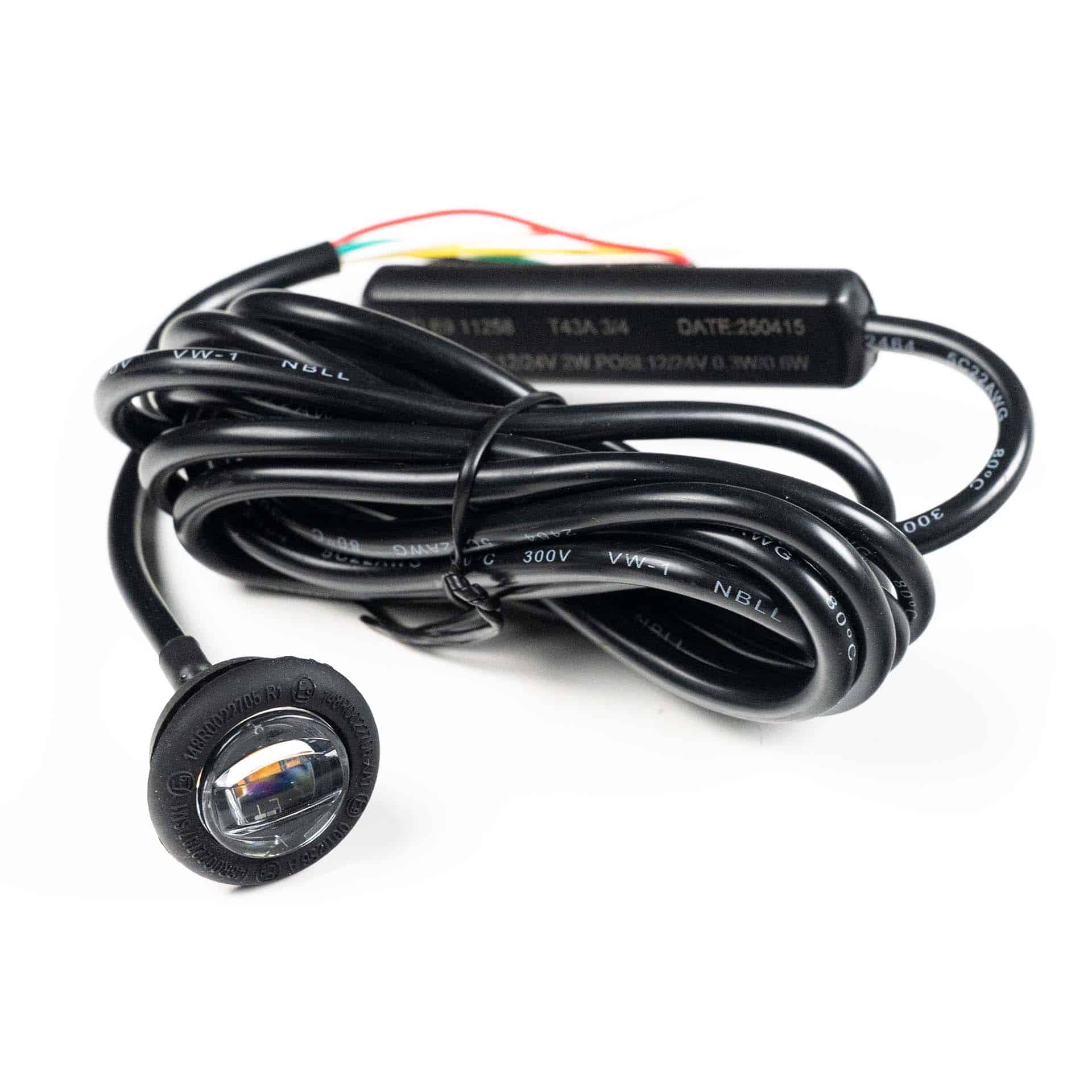

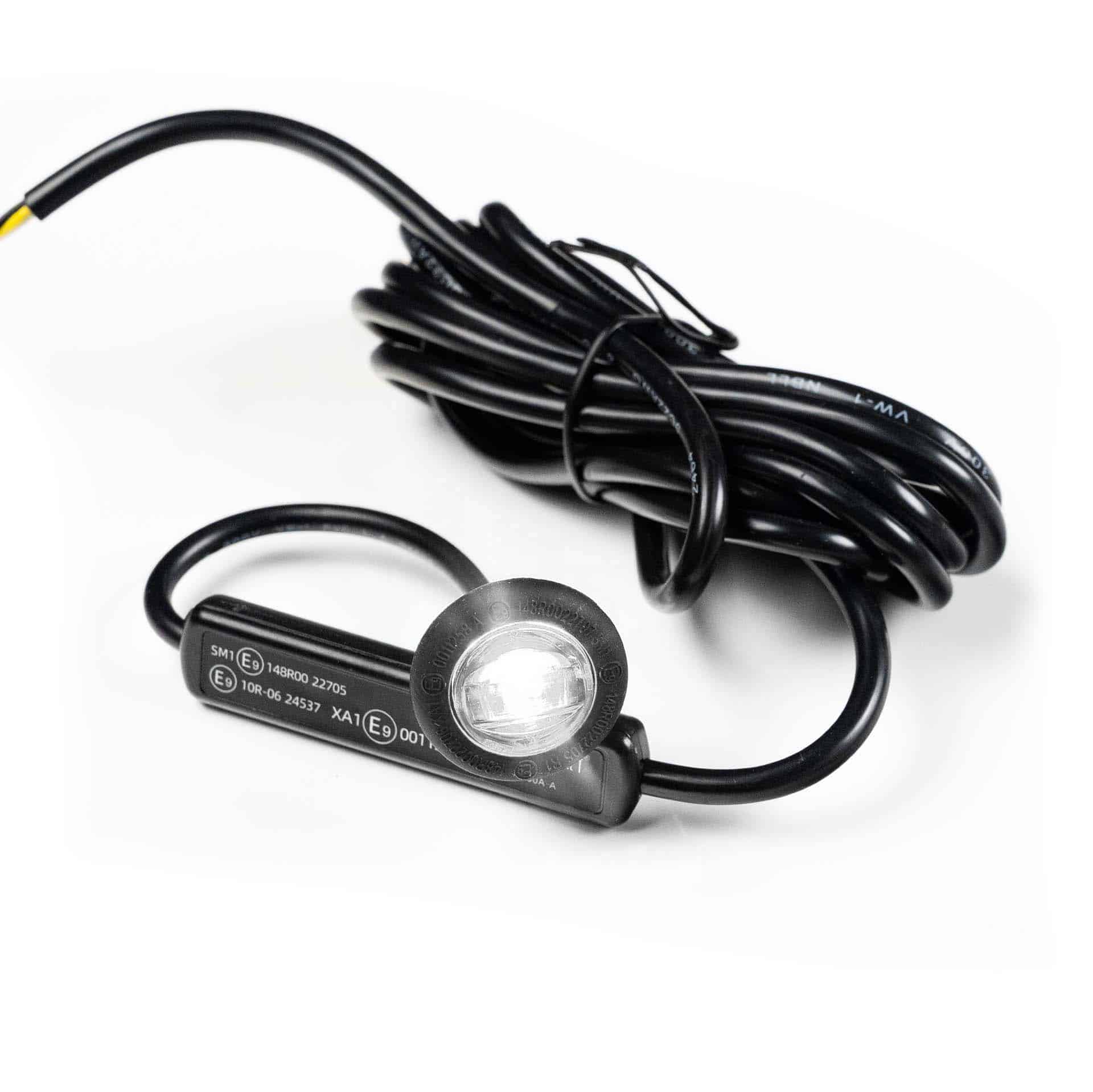

The TRALERT MV-4500 series includes compact LED marker lights suitable for applications with an on-board voltage of 12-24V. This model combines the functions: rear marker light and side marker light, and is therefore applicable to a variety of vehicle types that require improved visibility and indication. The polycarbonate housing and lens ensure impact resistance and durability in demanding environments. Thanks to its IP67 protection rating, the marker light is completely dust-proof and protected against temporary immersion. The lighting is certified to CE, ECE R10 and ECE R148. With a diameter of 27.5 mm and a depth of 20.5 mm, the marker light can be mounted discreetly, while the 200 cm long connection cable with open wire end offers installation flexibility. Plus points of this series:.
General
Voltage: 12-24v
Certification: CE, ECE-R10, ECE-R148
Warranties: 3 years
Brand: TRALERT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

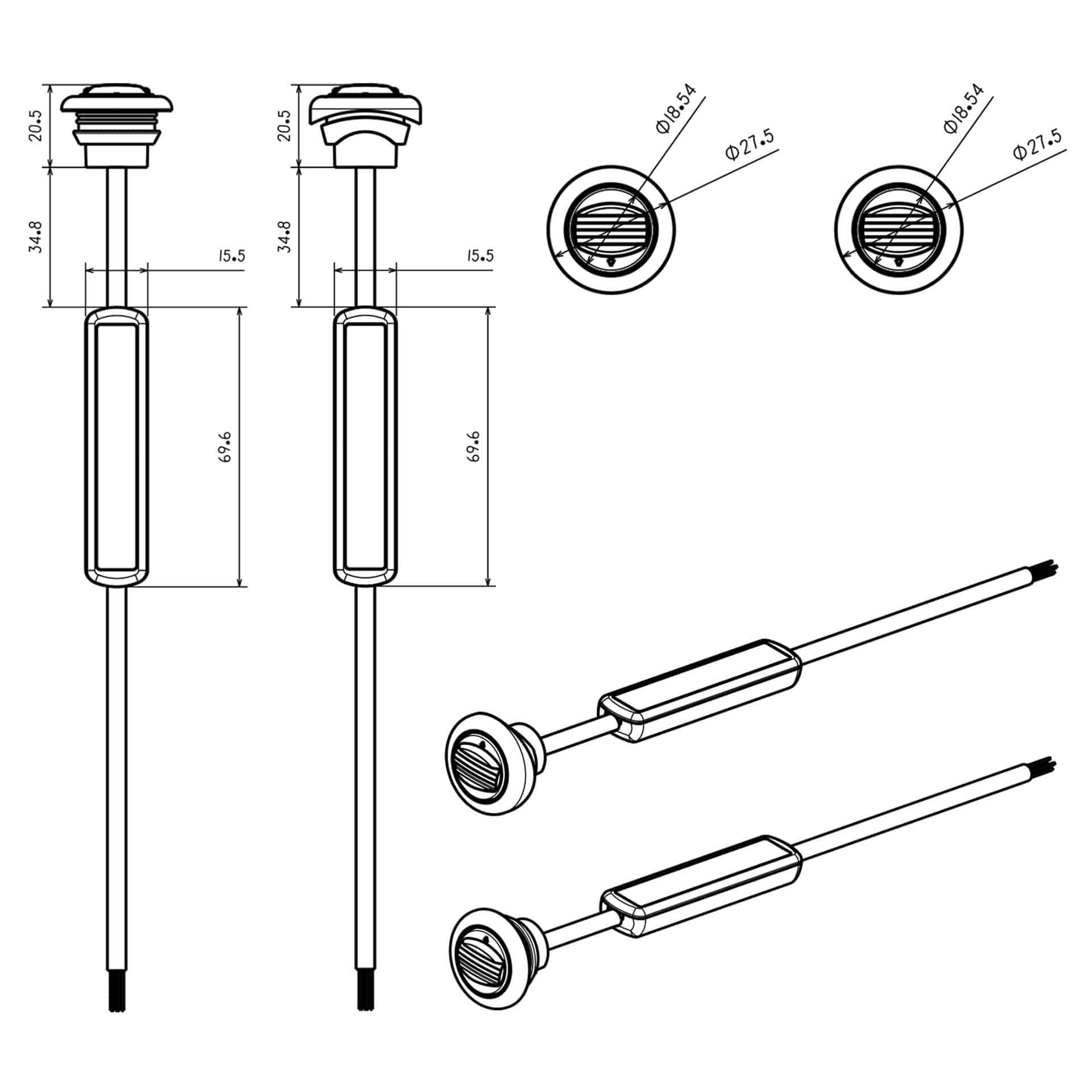

Dimensions: ø27.5 x 20.5mm
Shape: Round
Cut-out size: 19mm
Light image

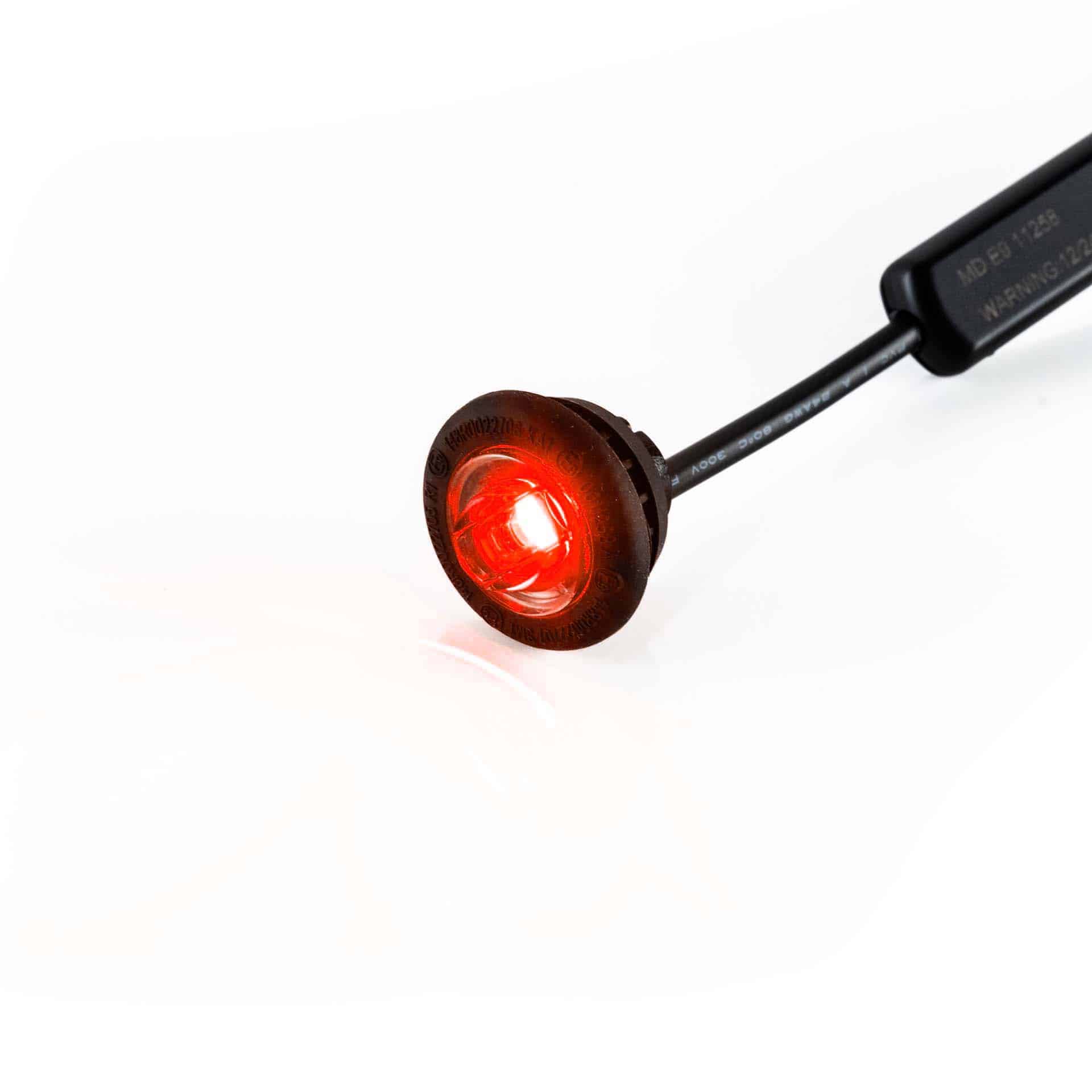

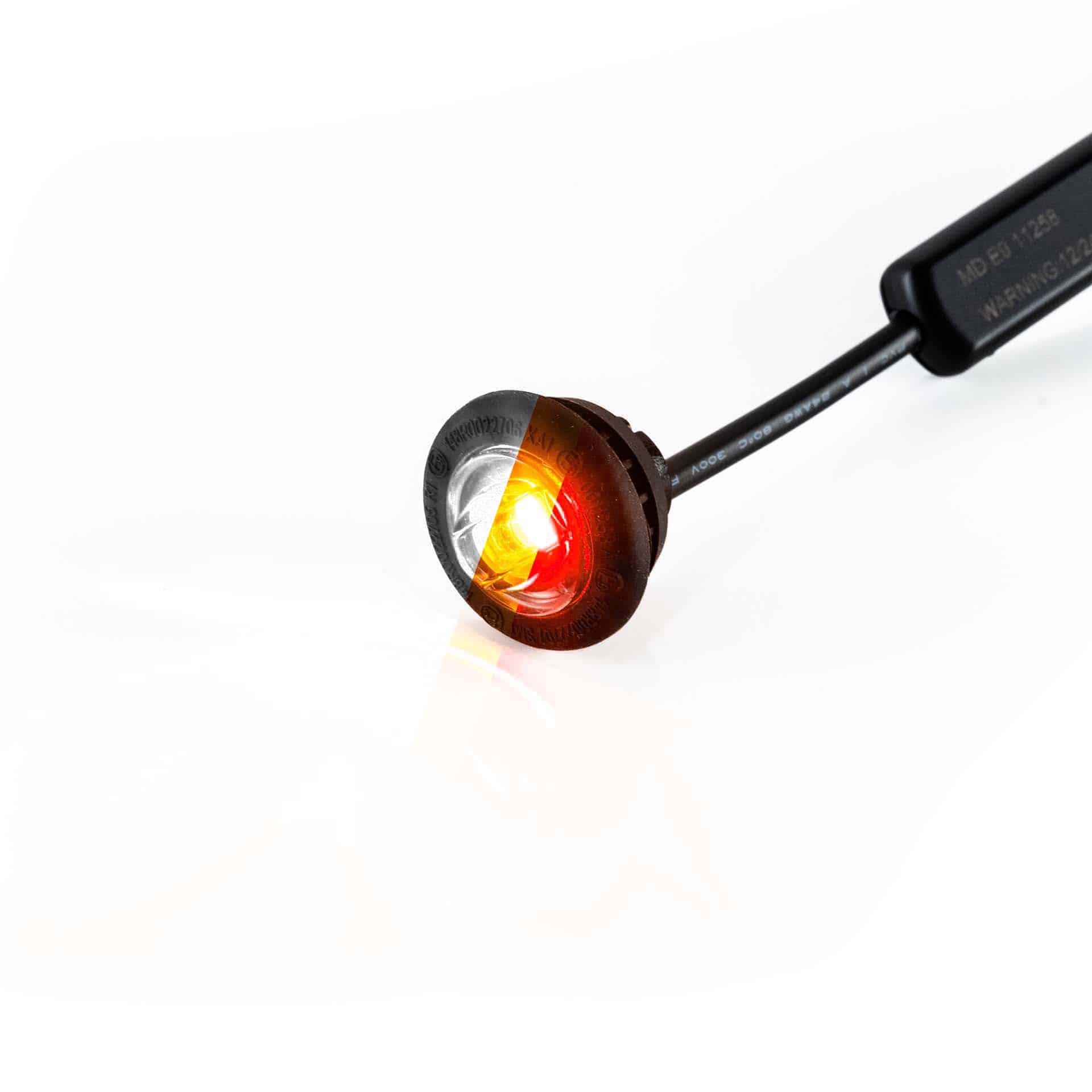

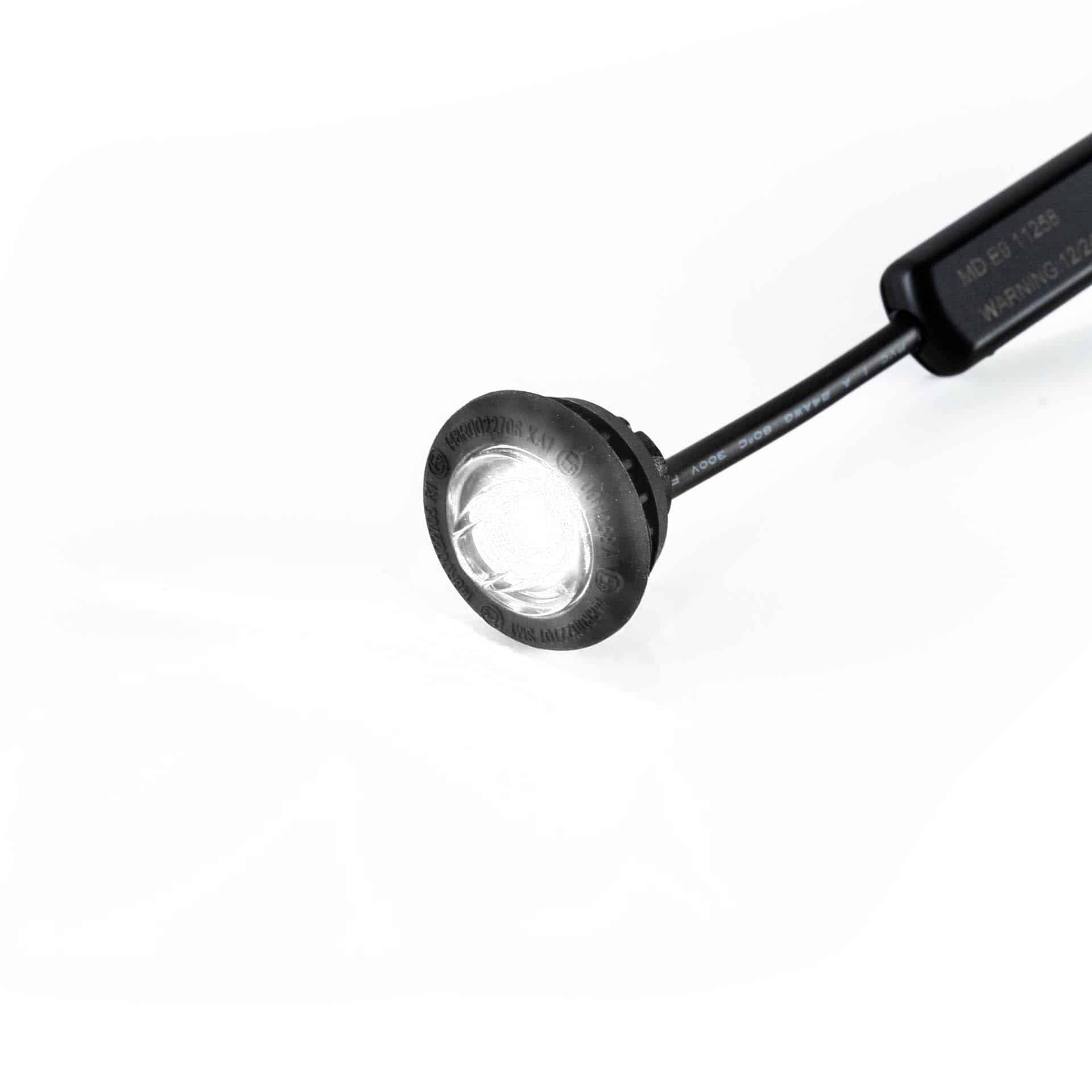

Light colour: Red, white, amber
Side marker lights: Yes
Rear marker lights: Yes
Front marker lights: Yes
Side indicators: No
Materials
Housing material: Polycarbonate
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end

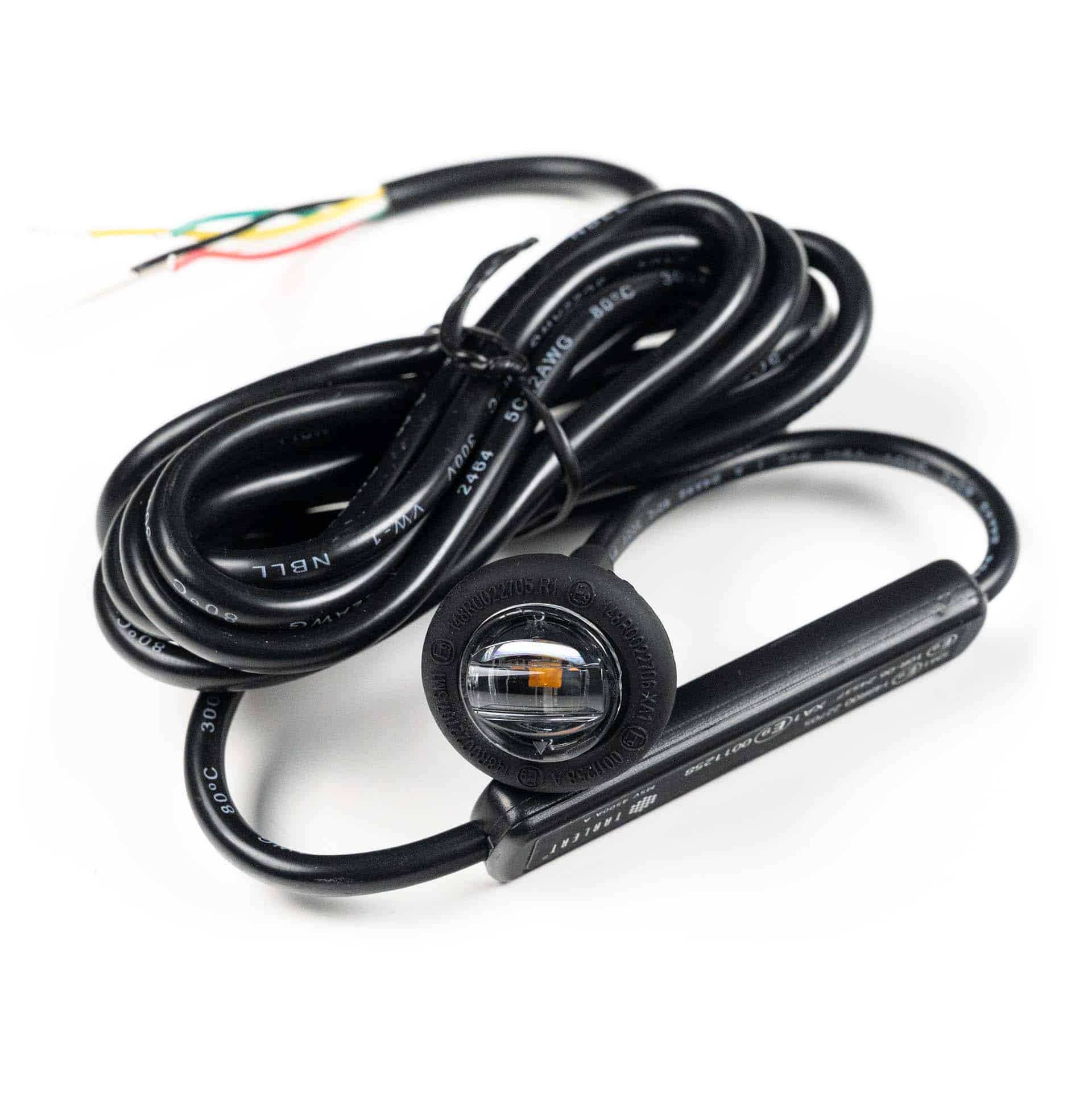

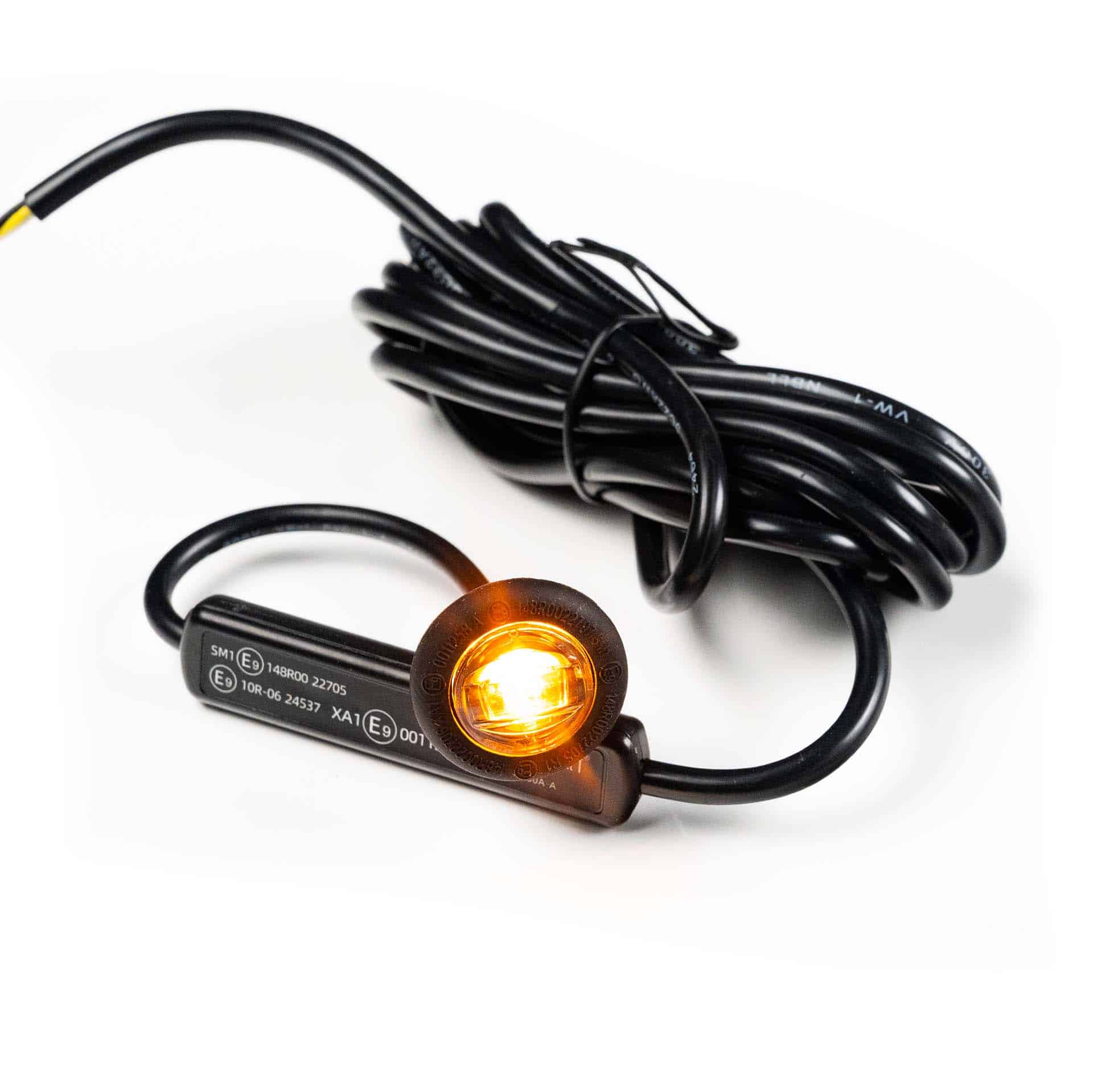

Cable length: 200cm cable
Protection class: IP67
