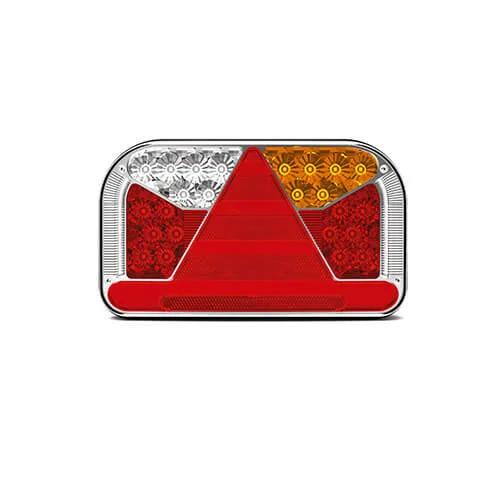

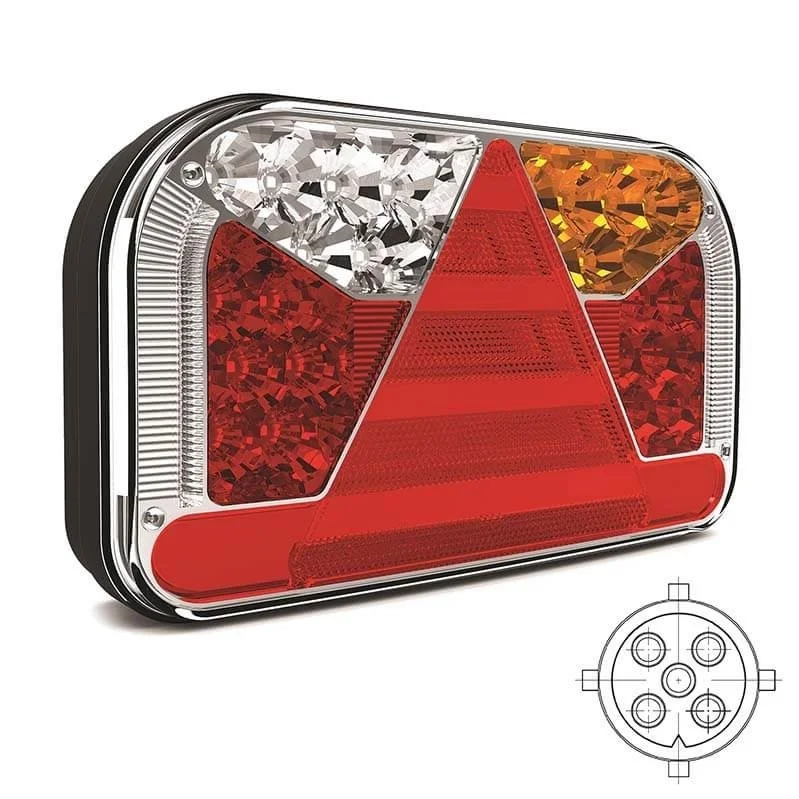

This LED rear light from Fristom's 500-series is designed for vehicles with a 12-24V electrical system. Thanks to surface mounting and a 5-PIN bayonet connection, integration into a variety of body configurations is possible. This model combines the functions: rear lights, brake lights, indicators, and licence plate lights. Dimensions are 240 x 140 x 55 mm, with housing and lens made of polycarbonate for impact resistance and durability. The rear light is equipped with a reflector function and is designed for reliable operation in various weather conditions, in accordance with IP68 classification. Certifications according to CE, ECE-R10, ECE-R3, ECE-R7, ECE-R6, and ECE-R4 underline its usability on public roads within Europe. This model offers a functional solution for applications where a robust, multifunctional LED rear light unit is desired. Plus points of this series: Multi-function rear lights, available in many configurations, fully certified, multi voltage.
General
Voltage: 12-24v
Certification: CE, ECE-R10, ECE-R3, ECE-R4, ECE-R6, ECE-R7
Warranties: 2 years
Brand: Fristom
Suitable for: Semi-Trailers
Dimensions

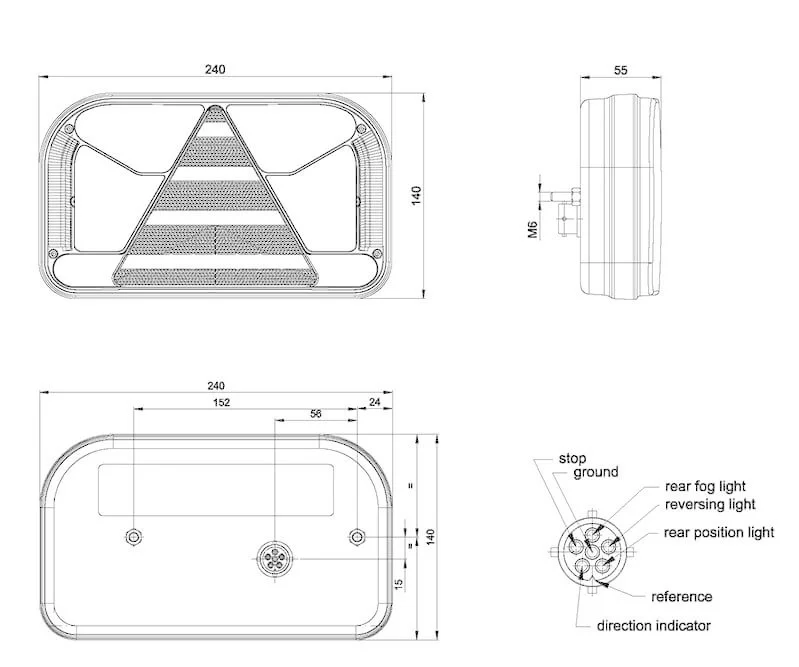

Dimensions: 240 x 140 x 55mm
Shape: Rectangular
Centre distance: 152mm
Side: Left
Light image
Indicator light: Yes
Rear lights: Yes
Fog lights: No
Reversing lights: No
Licence plate light: Yes
Brake lights: Yes
Dynamic indicator light: No
Reflectors: Triangular reflector
Materials
Housing material: Polycarbonate
Housing colour: Black
Lens material: Polycarbonate
Technical
Connectors: 5-PIN bayonet
Cable length: N/A
Protection class: IP68
Mounting: Surface mounting
