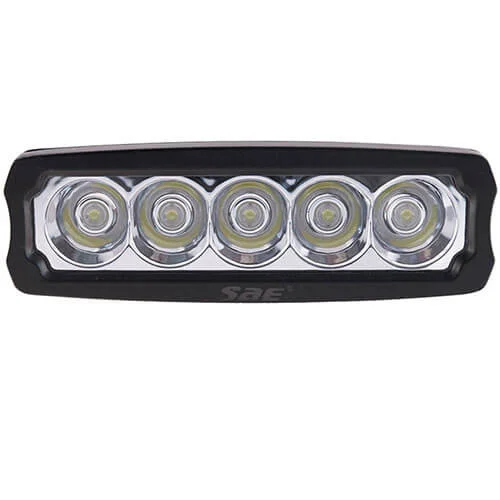

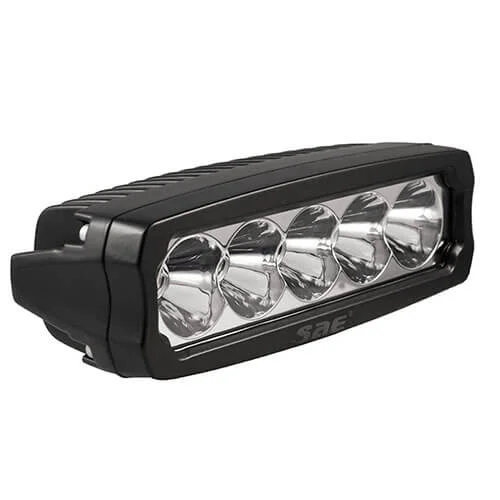

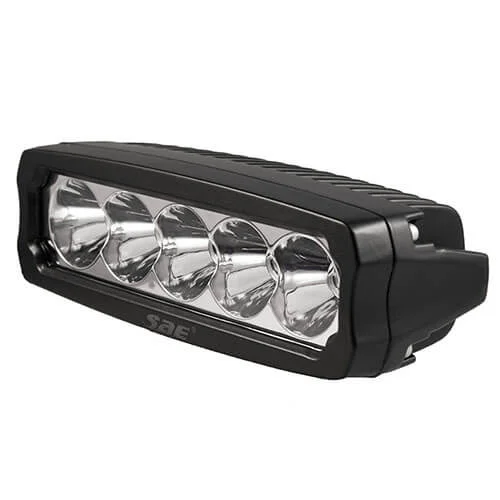

The TRSW12232 E from TRALERT is a compact LED work light, suitable for mounting on various commercial vehicles and machines that operate within a voltage range of 9-36 V. This version offers a combined light image (Combi beam), providing both width and depth illumination in one luminaire. With a light output of 1,500 lm, this LED work light supports work in a variety of situations and environments. The housing is made of aluminium and fitted with a robust polycarbonate lens. This makes the work light resistant to external influences, supported by its IP68 rating. Thanks to CE and ECE R10 certification, electromagnetic compatibility is ensured. Connection is via a 2-PIN Deutsch connector, combined with a cable length of 40 cm. The dimensions are 139 x 45 x 71 mm and mounting is via surface mounting.
General
Voltage: 9-36v
Certification: CE, ECE-R10
Warranties: 2 years
Brand: TRALEERT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

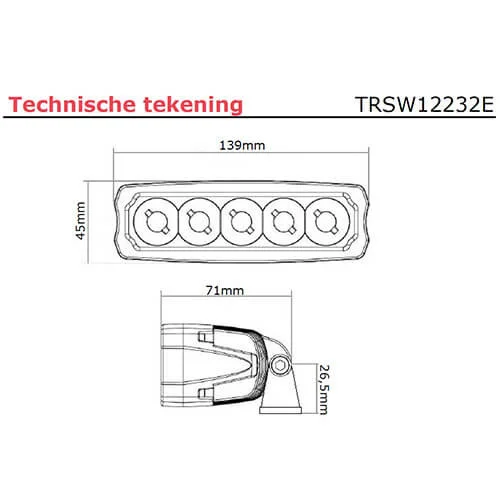

Dimensions: 139 x 45 x 71mm
Shape: Strip
Light image
Light image: Combi beam
Lumen: 1500 lumen

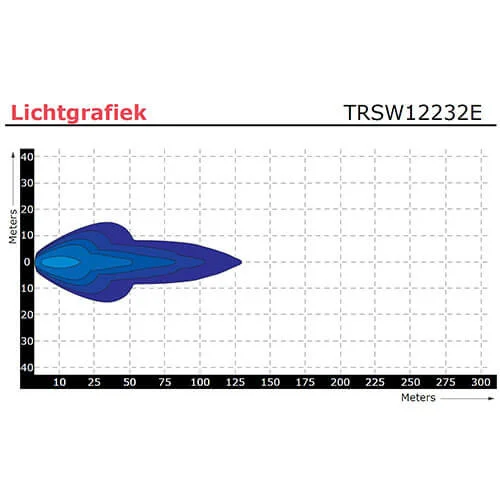

Light range: 42 lux@10m / 0.25 lux@130m
Number of LEDs: 5 x 3 Watt Epistar LEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: 2-PIN Deutsch connector
Cable length: 40cm cable
Wattage: 15 Watt
Lumen: 1500 lumen
Protection class: IP68
Mounting: Surface mounting
